Description
General part information

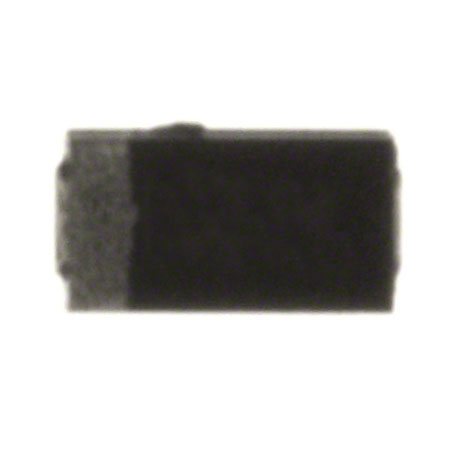

F320G686MAA
68 µF Molded Tantalum Polymer Capacitor 4 V 1206 (3216 Metric) 180mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | F320G686MAA |
|---|---|
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 180 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.071 in |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
