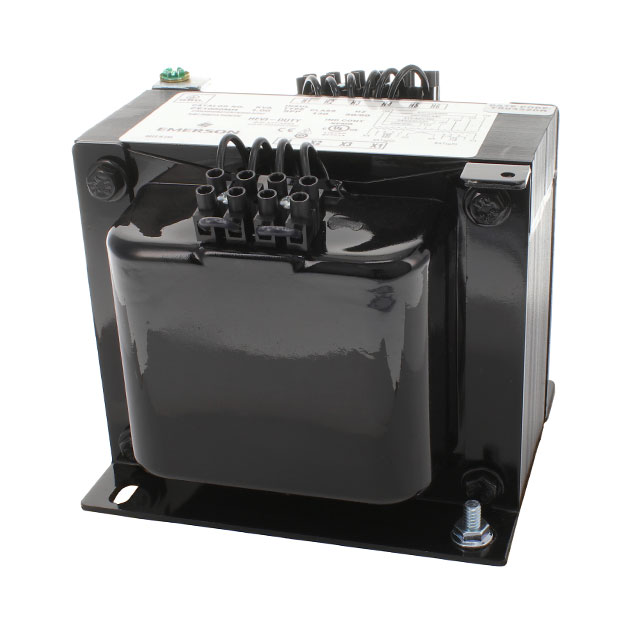

CE1000MH

Active

SolaHD

PWR XFMR LAMINATED 1000VA CHAS

Search across all available documentation for this part.

Active

SolaHD

PWR XFMR LAMINATED 1000VA CHAS

Technical Specifications

Parameters and characteristics commom to parts in this series

PWR XFMR LAMINATED 1000VA CHAS

Part	Center Tap	Type	Power - Max [Max]	Mounting Type	Primary Winding(s)	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Voltage - Primary	Secondary Winding(s)
SolaHD CE1000MH		Laminated Core	1000 VA	Chassis Mount	Multiple Taps, Single	Quick Connect, Solder
SolaHD CE1000MC		Laminated Core	1000 VA	Chassis Mount	Multiple Taps, Single	Quick Connect, Solder	162.1 mm	171.5 mm	143 mm	200 V, 230 V, 400 V, 460 V, 575 V	Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PWR XFMR LAMINATED 1000VA CHAS

Technical documentation and resources
