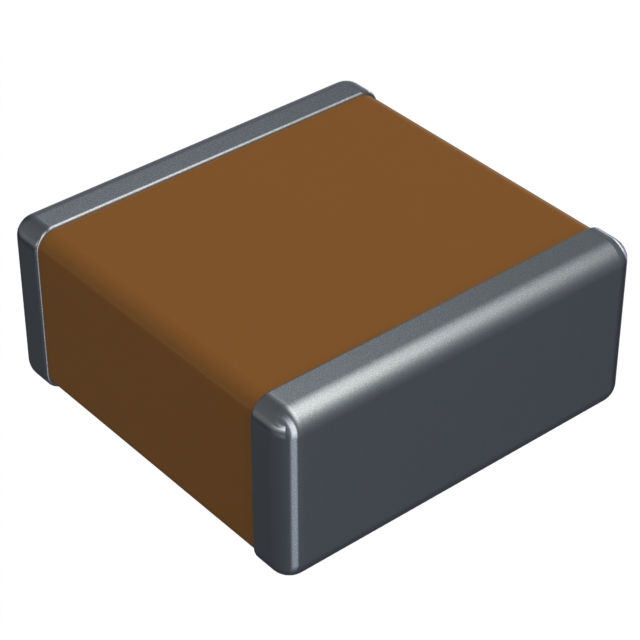

2225HC103KAZ1A
ActiveKYOCERA AVX
CAP CER 10000PF 3KV X7R 2225
2225HC103KAZ1A
ActiveKYOCERA AVX
CAP CER 10000PF 3KV X7R 2225
Description
General part information
2225HC103KAZ1A
10000 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 2225 (5763 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2225HC103KAZ1A |
|---|---|
| Applications | SMPS Filtering, Boardflex Sensitive |
| Capacitance | 10000 pF |
| Features | Soft Termination, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2225 (5763 Metric) |
| Size / Dimension Length | 0.225 in |
| Size / Dimension Width | 0.25 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.1 in |
| Tolerance | 10 % |
| Voltage - Rated | 3000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
