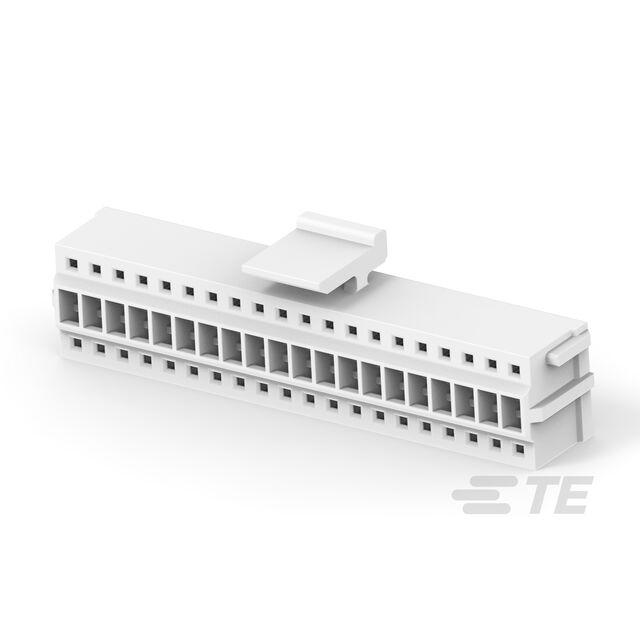

2394528-4
ActiveTE Connectivity AMP Connectors
1.5P DUAL ROW LOCKING HPI CABLE
2394528-4
ActiveTE Connectivity AMP Connectors
1.5P DUAL ROW LOCKING HPI CABLE
Description
General part information
2394528-4
40 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2394528-4 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Halogen Free, Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.059 in |
| Row Spacing | 0.185 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
