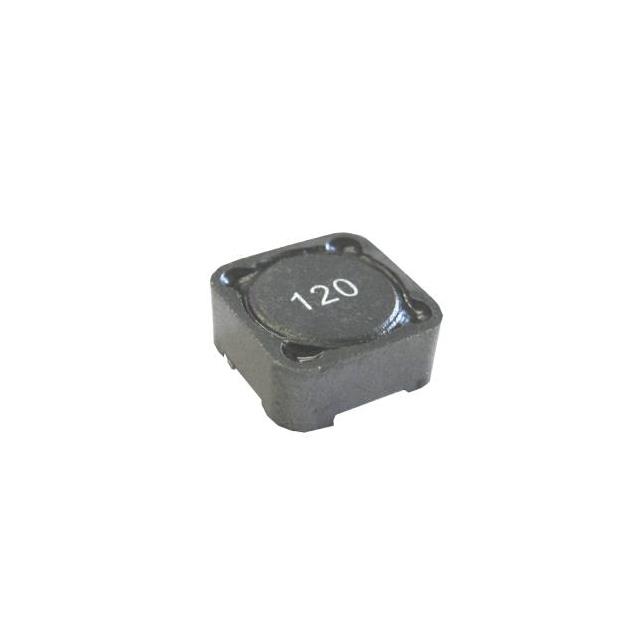

CTCDRH125F-101M
ActiveCentral Technologies
100UH SMD SHIELDED POWR INDUCTOR
CTCDRH125F-101M
ActiveCentral Technologies
100UH SMD SHIELDED POWR INDUCTOR
Description
General part information
CTCDRH125F-101M
100 µH Shielded Inductor 160mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTCDRH125F-101M |
|---|---|
| Current - Saturation (Isat) | 1.3 A |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.504 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
