N2526-5002-UB
Active3M

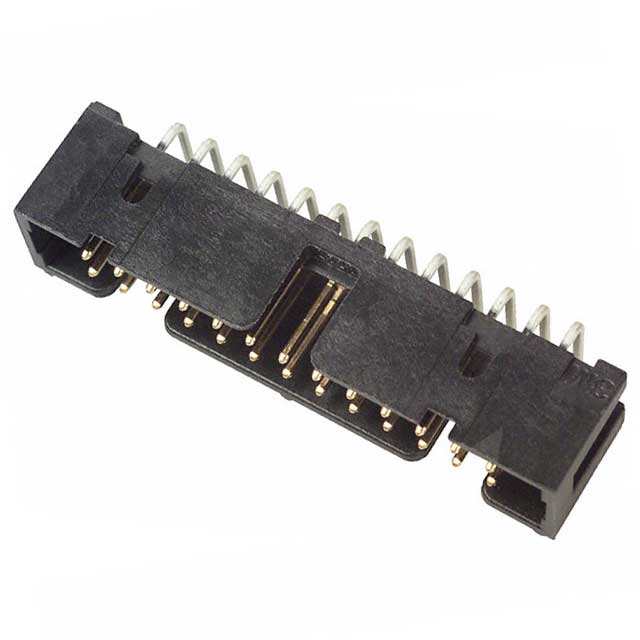

CONN HEADER R/A 26POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N2526-5002-UB
Active3M
CONN HEADER R/A 26POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N2526-5002-UB | N2526 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 15 - 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.38 - 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | 2.84 mm | 2.84 mm |
| Contact Length - Post | 0.112 in | 0.112 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.75 A | 1.75 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot, Pick and Place |
| Insulation Color | Black | Black |
| Insulation Height | 0.338 in | 0.338 in |
| Insulation Height | 8.59 mm | 8.59 mm |
| Insulation Height | - | 9.91 mm |
| Insulation Height | - | 0.39 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Surface Mount |
| Number of Positions | 26 | 26 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
N2526 Series
CONN HEADER R/A 26POS 2.54MM
| Part | Features | Number of Positions Loaded | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Material | Contact Finish - Mating | Insulation Color | Contact Shape | Connector Type | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Material Flammability Rating | Termination | Contact Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Number of Rows | Fastening Type | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying Slot | All | Board to Board, Cable | 30 Áin | 0.76 Ám | Tin-Lead | 0.1 in | 2.54 mm | 26 | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Gold | Black | Square | Header | 1.75 A | 200 µin | 5.08 µm | Shrouded - 4 Wall | UL94 V-0 | Solder | Male Pin | 2.84 mm | 0.112 in | 0.338 in | 8.59 mm | 105 ░C | -55 °C | Through Hole, Right Angle | 2.54 mm | 0.1 in | Copper Alloy | 2 | Push-Pull | |||
Keying Slot | All | Board to Board, Cable | 30 Áin | 0.76 Ám | Tin | 0.1 in | 2.54 mm | 26 | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Gold | Black | Square | Header | 1.75 A | 200 µin | 5.08 µm | Shrouded - 4 Wall | UL94 V-0 | Solder | Male Pin | 2.84 mm | 0.112 in | 0.338 in | 8.59 mm | 105 ░C | -55 °C | Through Hole, Right Angle | 2.54 mm | 0.1 in | Copper Alloy | 2 | Push-Pull | |||
Keying Slot | All | Board to Board, Cable | 15 µin | 0.38 µm | Tin-Lead | 0.1 in | 2.54 mm | 26 | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Gold | Black | Square | Header | 1.75 A | 200 µin | 5.08 µm | Shrouded - 4 Wall | UL94 V-0 | Solder | Male Pin | 2.84 mm | 0.112 in | 0.338 in | 8.59 mm | 105 ░C | -55 °C | Through Hole, Right Angle | 2.54 mm | 0.1 in | Copper Alloy | 2 | Push-Pull | |||
Keying Slot, Pick and Place | All | Board to Board, Cable | 30 Áin | 0.76 Ám | Tin | 0.1 in | 2.54 mm | 26 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Gold | Black | Square | Header | 1.75 A | 200 µin | 5.08 µm | Shrouded - 4 Wall | UL94 V-0 | Solder | Male Pin | 105 ░C | -55 °C | Surface Mount | 2.54 mm | 0.1 in | Copper Alloy | 2 | Push-Pull | 9.91 mm | 0.39 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N2526 Series
Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
