PFC157181B-351K
ActiveITG Electronics, Inc.
PFC CHOKE 350.0UH 15.1A 62.5M
PFC157181B-351K
ActiveITG Electronics, Inc.
PFC CHOKE 350.0UH 15.1A 62.5M
Description
General part information
PFC157181B-351K

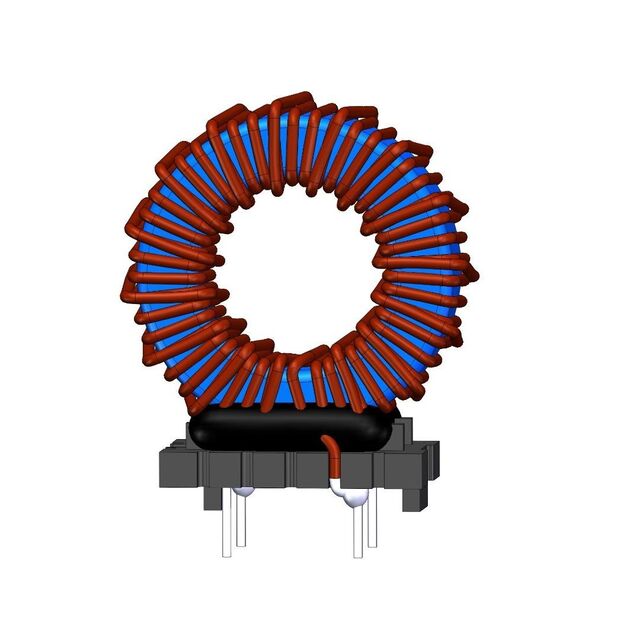

350 µH Unshielded Toroidal Inductor 8.1 A 62.5mOhm Max Radial, Vertical, 4 Leads (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | PFC157181B-351K |
|---|---|
| Current - Saturation (Isat) | 7.9 A |
| Current Rating | 8.1 A |
| DC Resistance (DCR) (Max) | 62.5 mOhm |
| Height - Seated (Max) | 1.811 in |
| Inductance | 350 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Vertical |
| Shielding | Unshielded |
| Size / Dimension Length | 1.535 in |
| Size / Dimension Width | 0.787 in |
| Tolerance | 10 % |
| Type | Toroidal |
