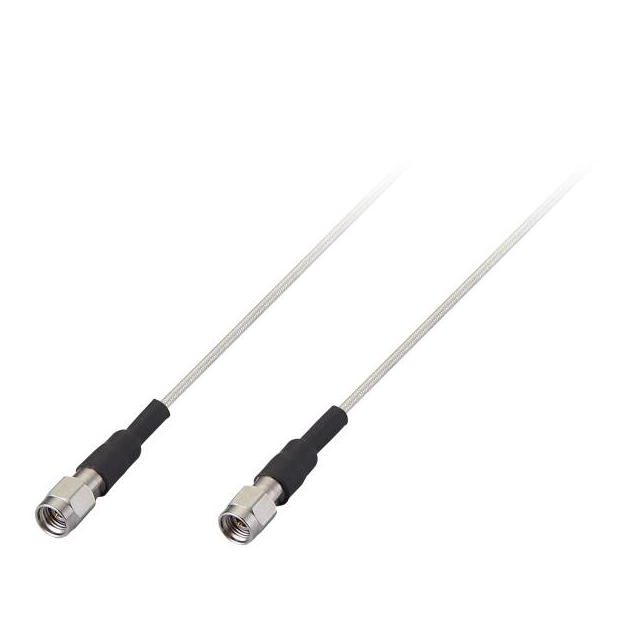

MCA4.L0152L
ObsoleteTaoglas Limited
COAX CBL 2.92MM TO 2.92MM 6"
MCA4.L0152L
ObsoleteTaoglas Limited
COAX CBL 2.92MM TO 2.92MM 6"
Description
General part information
MCA4.L0152L
Cable Assembly Coaxial 2.92mm to 2.92mm RG-405 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MCA4.L0152L |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 405 |
| Color | Black |
| Frequency - Max | 26.5 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Style | 2.92mm to 2.92mm |
