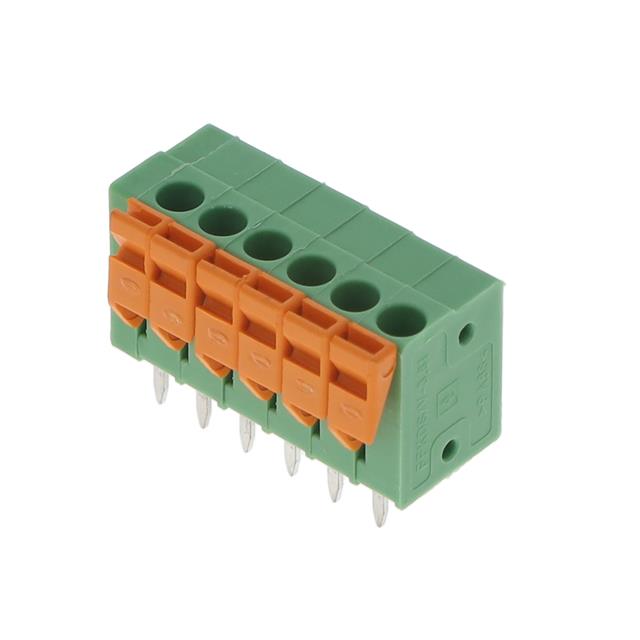

1870187
ActivePhoenix Contact
TERM BLK 6POS TOP ENT 3.81MM PCB
1870187
ActivePhoenix Contact
TERM BLK 6POS TOP ENT 3.81MM PCB
Description
General part information
1870187
6 Position Wire to Board Terminal Block Vertical with Board 0.150" (3.81mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1870187 |
|---|---|
| Current | 6 A |
| Features | Interlocking (Side), Lever Actuated |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.15 in |
| Positions Per Level | 6 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
