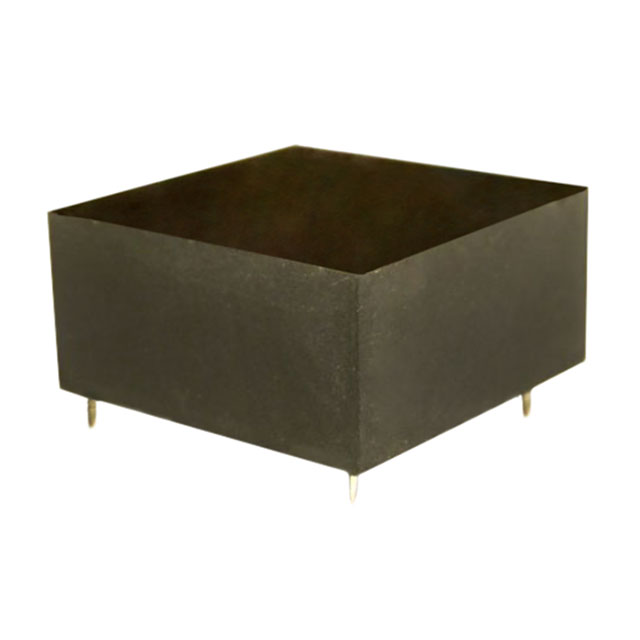

CMT908-H4-B
ActiveTriad Magnetics
CMC 16MH 2.6A 2LN TH ESD
CMT908-H4-B
ActiveTriad Magnetics
CMC 16MH 2.6A 2LN TH ESD
Description
General part information
CMT908-H4-B
16 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.6A DCR 160mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT908-H4-B |
|---|---|
| Approval Agency | IEC, VDE, CSA, UL |
| Current Rating (Max) | 2.6 A |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.8 in |
| Inductance | 16 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.5 in |
| Voltage Rating - AC | 250 V |
