34137-3
ActiveTE Connectivity AMP Connectors
SOLIS, PARA 16-14 60/40 SN-PB
34137-3
ActiveTE Connectivity AMP Connectors
SOLIS, PARA 16-14 60/40 SN-PB
Description
General part information
34137-3

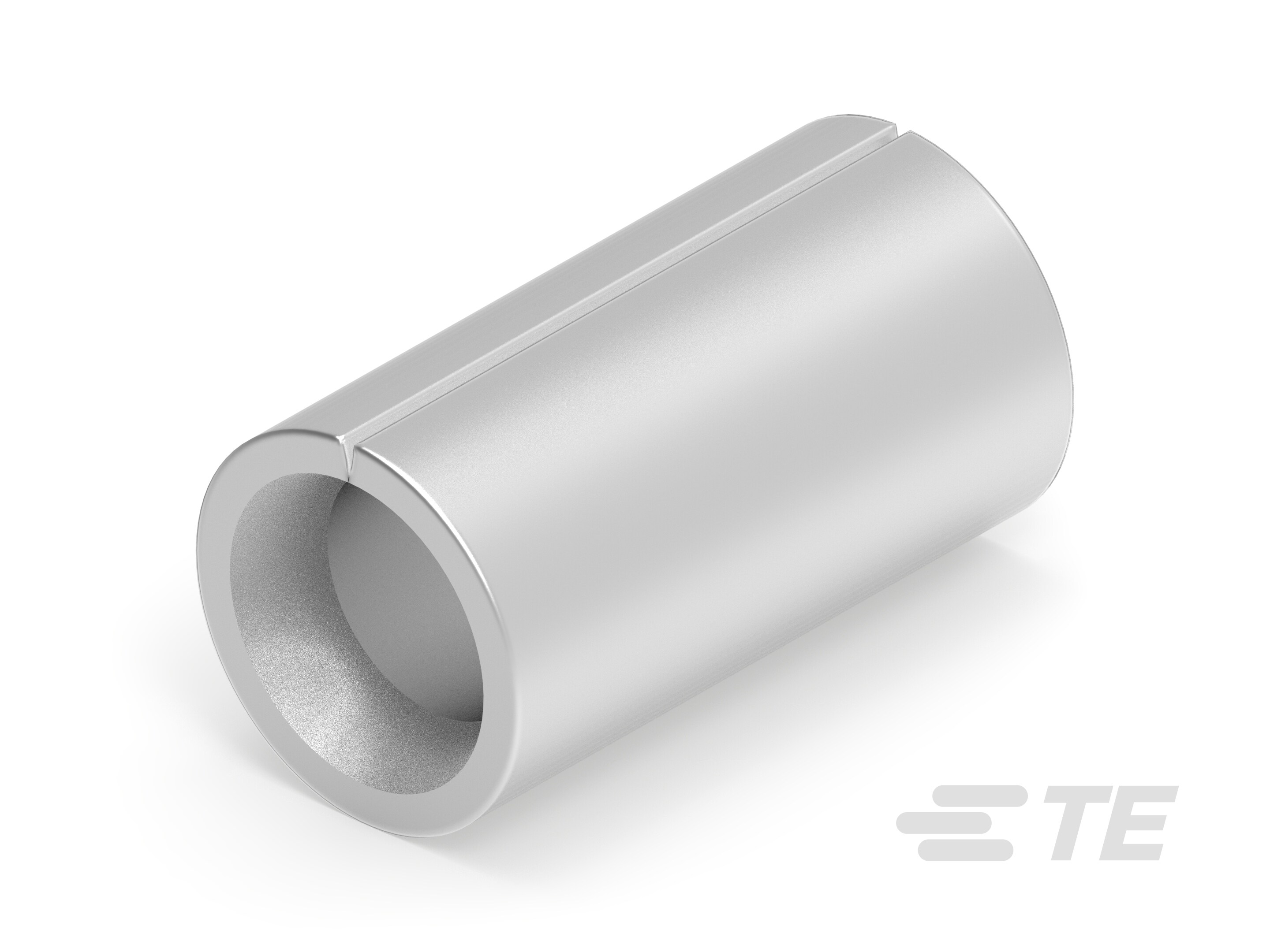

Parallel Splice, 16 – 14 AWG, 1.25 – 2 mm² Wire, Serrated, 2050 – 5180 CMA, Copper, 8 Serration, 7.65 mm [.301 in] Length, Loose Piece, Closed Barrel
Technical Specifications
Parameters and characteristics for this part
| Specification | 34137-3 |
|---|---|
| Features | Brazed Seam, Serrated Mating Area |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings (Parallel) |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
