04P MTA156 HDR ASSY STR W/O#2-643493-1

643493-1

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 04P MTA156 HDR ASSY STR W/O#2

Find alt
04P MTA156 HDR ASSY STR W/O#2-643493-1

643493-1

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 04P MTA156 HDR ASSY STR W/O#2

Find alt

Description

General part information

MTA-156 Series

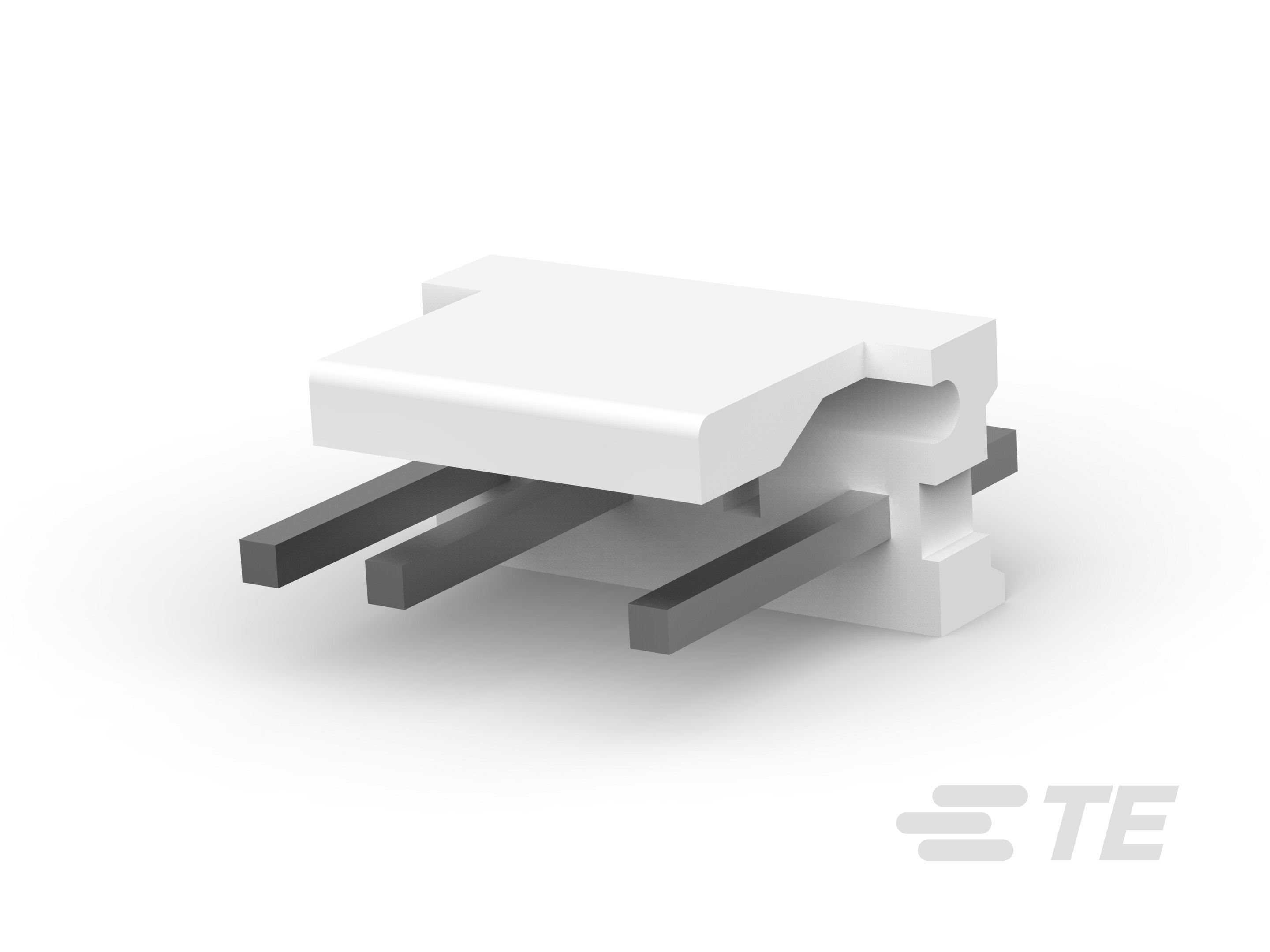

PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Solder, MTA 156

Technical Specifications

Parameters and characteristics for this part

Specification643493-1
ApplicationsGeneral Purpose, Industrial
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Mating0.4 in
Contact Length - Post0.124 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeFriction Lock
Insulation ColorNatural
Insulation Height0.425 in
Insulation MaterialGlass Filled, Thermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions4
Number of Positions Loaded3
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Overall Contact Length0.65 in
Pitch - Mating0.156 in
ShroudingShrouded - 1 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating600 V
