Description
General part information

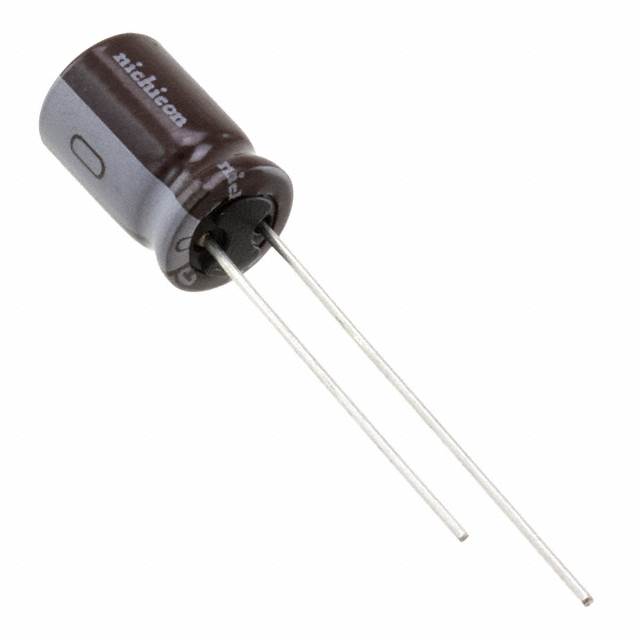

UVC2G5R6MPD
5.6 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UVC2G5R6MPD |
|---|---|
| Applications | General Purpose |
| Capacitance | 5.6 µF |
| Height - Seated (Max) | 0.512 in |
| Lead Spacing | 0.138 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 70 mA, 105 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
