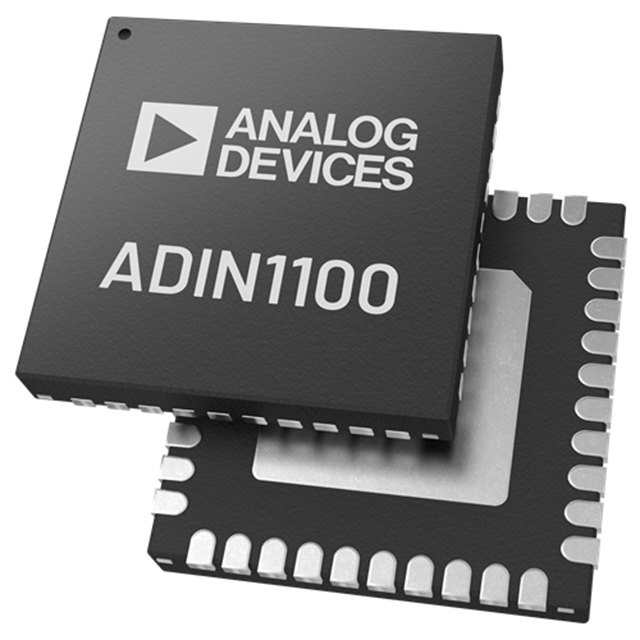

ADIN1100CCPZ-RL
UnknownAnalog Devices Inc./Maxim Integrated
IC TXRX FULL/HALF 1/1 40LFCSP
ADIN1100CCPZ-RL
UnknownAnalog Devices Inc./Maxim Integrated
IC TXRX FULL/HALF 1/1 40LFCSP
Description
General part information
ADIN1100CCPZ-RL
1/1 Transceiver Full, Half Ethernet 40-LFCSP (6x6)
Technical Specifications
Parameters and characteristics for this part
| Specification | ADIN1100CCPZ-RL |
|---|---|
| Data Rate | 10 Mbps |
| Duplex | Half, Full |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Package Length | 6 mm |
| Package Name | 40-LFCSP |
| Package Width | 6 mm |
| Protocol | Ethernet |
| Type | Transceiver |
| Voltage - Supply (Range 1 Maximum) | 1.2 V |
| Voltage - Supply (Range 1 Minimum) | 1 V |
| Voltage - Supply (Range 2 Maximum) | 3.46 V |
| Voltage - Supply (Range 2 Minimum) | 1.71 V |
| Voltage - Supply (Range 3 Maximum) | 3.46 V |
| Voltage - Supply (Range 3 Minimum) | 3.13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
