Description
General part information
SAW0LH0A-W1/W2-CA

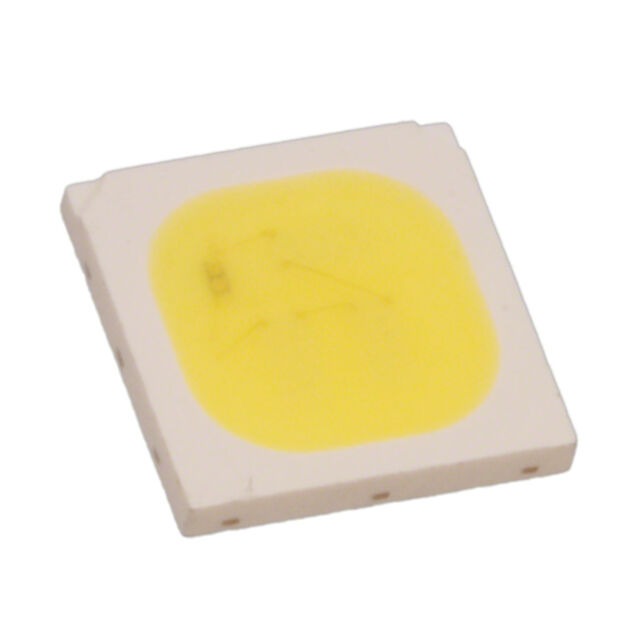

LED Lighting Acrich MJT 5050 White, Neutral / White, Cool 3700K ~ 7000K 63V 20mA 120° 2020 (5050 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SAW0LH0A-W1/W2-CA |
|---|---|
| CCT (K) Maximum | 7000 K |
| CCT (K) Minimum | 3700 K |
| Color | White, Neutral / White, Cool |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 60 mA |
| Current - Test | 20 mA |
| Flux (Maximum) | 189 lm |
| Flux (Minimum) | 166 lm |
| Height - Seated (Max) | 0.03 in |
| Lumens/Watt (Value 1) | 132 lm/W |
| Lumens/Watt (Value 2) | 150 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Package Name | 5050 |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Thermal Resistance of Package | 6 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 63 V |
