PP-014
ActiveSame Sky (Formerly CUI Devices)
CONN PWR PLUG 1.7X4.75MM SLDR
PP-014
ActiveSame Sky (Formerly CUI Devices)
CONN PWR PLUG 1.7X4.75MM SLDR
Description
General part information
PP-014

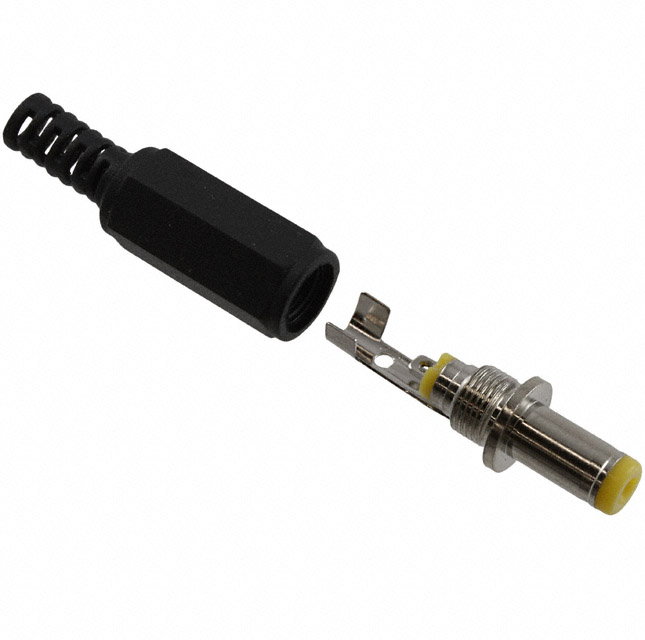

Power Barrel Connector Plug 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3 Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-014 |
|---|---|
| Actual Diameter (ID) | 0.067 in |
| Actual Diameter (OD) | 0.187 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 5 A |
| Features | Strain Relief |
| Gender | Female |
| Housing Material | PVC, Polyvinyl Chloride |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (ID) | 1.7 mm |
| Industry Recognized Mating Diameter (OD) | 4.75 mm |
| Industry Recognized Mating Diameter (Options) | EIAJ-3 |
| Insulation Color | Yellow |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.374 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VAC |
