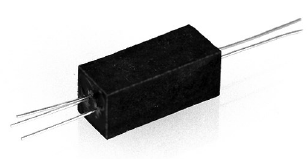

OPI126

OPI126

Active
TT Electronics/BI

PHOTOLOGIC OPTICALLY COUPLED ISOLATOR

Find alt
OPI126

OPI126

Active
TT Electronics/BI

PHOTOLOGIC OPTICALLY COUPLED ISOLATOR

Find alt

Description

General part information

OPI126

Logic Output Optoisolator 250kbps Open Collector 15000VDC 1 Channel CMTI

Technical Specifications

Parameters and characteristics for this part

SpecificationOPI126
Current - DC Forward (If) (Max)25 mA
Data Rate250 Kbps
Fall Time (Typ)100 ns
Input TypeDC
Inputs - Side 11
Inputs - Side 20
Mounting TypeThrough Hole
Number of Channels1
Operating Temperature (Max)100 °C
Operating Temperature (Min)-55 °C
Output TypeOpen Collector
Propagation Delay tpHL (Max)5 µs
Propagation Delay tpHL (Typ)5 µs
Propagation Delay tpLH (Max)5 µs
Propagation Delay tpLH (Typ)5 µs
Rise Time (Typ)100 ns
Voltage - Forward (Vf) (Max)1.5 V
Voltage - Isolation15 kV
Voltage - Supply (Maximum)5.5 V
Voltage - Supply (Minimum)4.5 V
