LMR-100A-PVC-W-400Ft
ActiveMcGill Microwave Systems

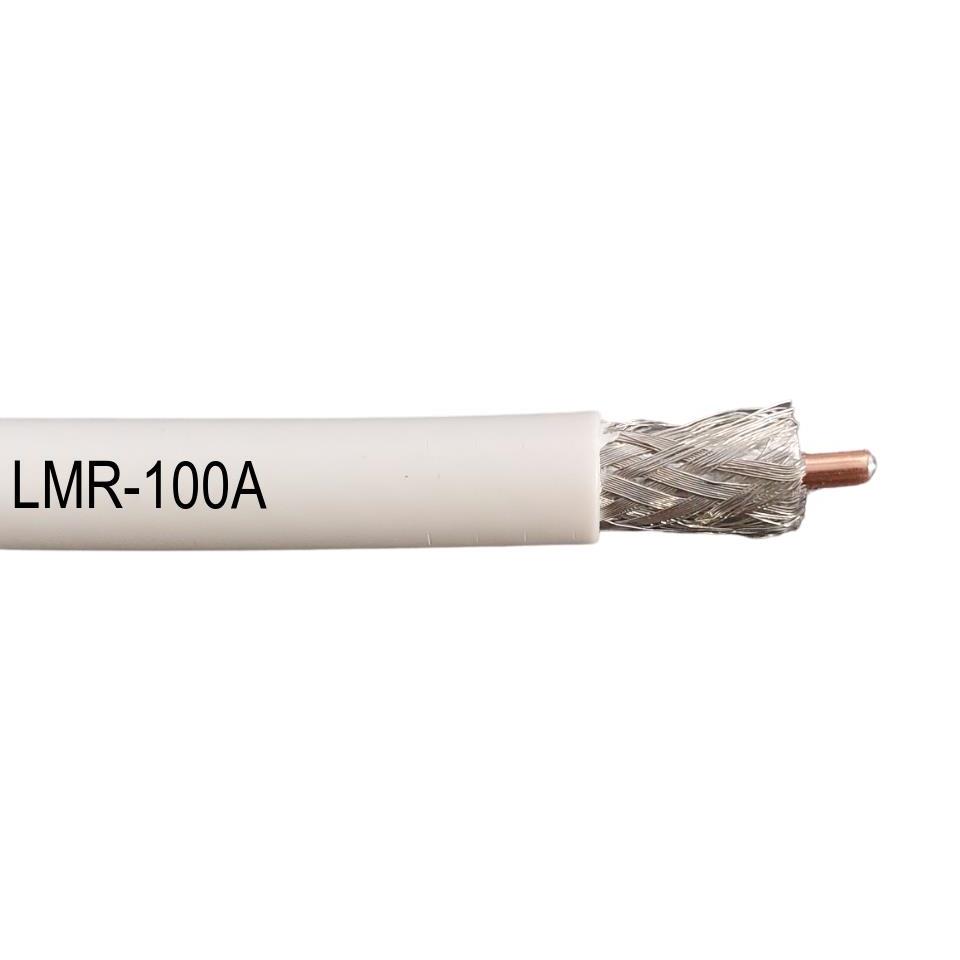

LMR-100A-WHITE COAX 400FT LENGTH
LMR-100A-PVC-W-400Ft
ActiveMcGill Microwave Systems
LMR-100A-WHITE COAX 400FT LENGTH
Description
General part information
LMR-100A-PVC-W-400Ft
Coaxial Cable LMR-100 400.0' (121.92m) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-100A-PVC-W-400Ft |
|---|---|
| Cable Group | LMR-100 |
| Cable Type | Coaxial |
| Conductor Material | Bare, Copper, Steel Covered |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.06 in |
| Dielectric Material | Polyethylene (PE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.11 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 400 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 66 % |
