NSYTRP23AR
ActiveSCHNEIDER ELECTRIC
PUSH-IN TERMINAL, 3PTS, 2,5MM, O
NSYTRP23AR
ActiveSCHNEIDER ELECTRIC
PUSH-IN TERMINAL, 3PTS, 2,5MM, O
Description
General part information
NSYTRP23AR

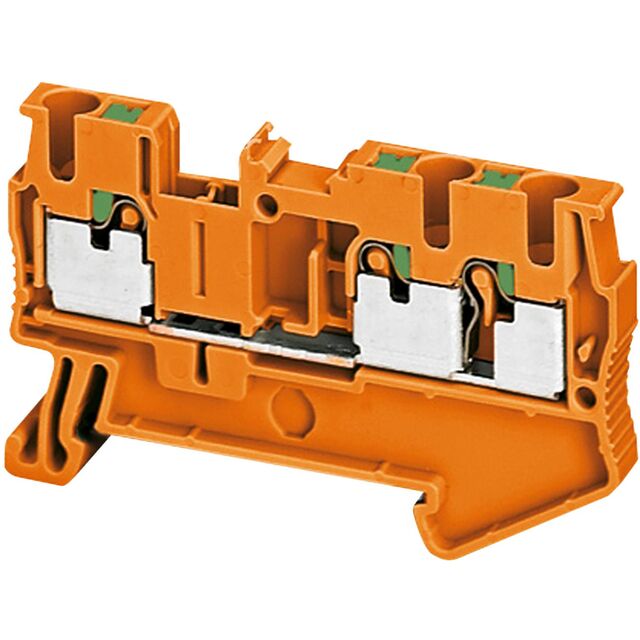

Terminal Block Connector 3 Position Feed Through Orange
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRP23AR |
|---|---|
| Color | Orange |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
