Description
General part information

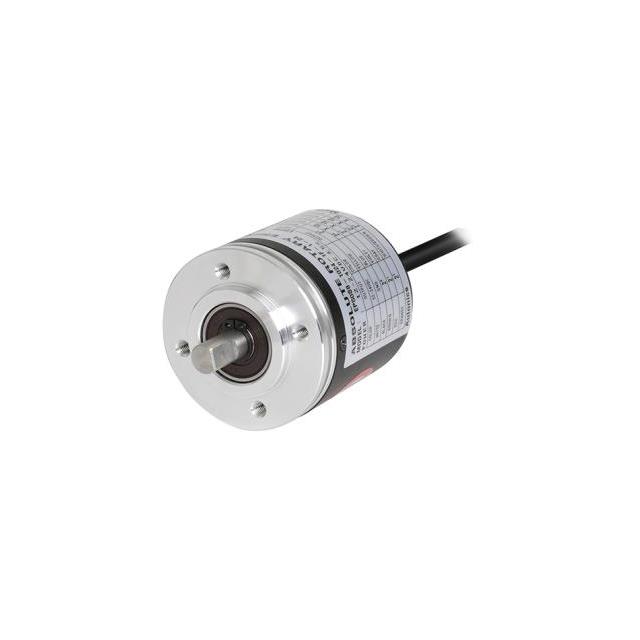

EP50S8-256-3F-N-24
Rotary Encoder Absolute 256 Gray Code (Absolute), NPN - Open Collector User Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | EP50S8-256-3F-N-24 |
|---|---|
| Built in Switch | No |
| Detent | No |
| Encoder Type | Absolute |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Output Type | NPN - Open Collector, Gray Code (Absolute) |
| Pulses per Revolution | 256 |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
