170011-2
ActiveTE Connectivity AMP Connectors
RING STRIP 18-14 MM2 0.503 X 11.938 TPBR
170011-2
ActiveTE Connectivity AMP Connectors
RING STRIP 18-14 MM2 0.503 X 11.938 TPBR
Description
General part information
170011-2

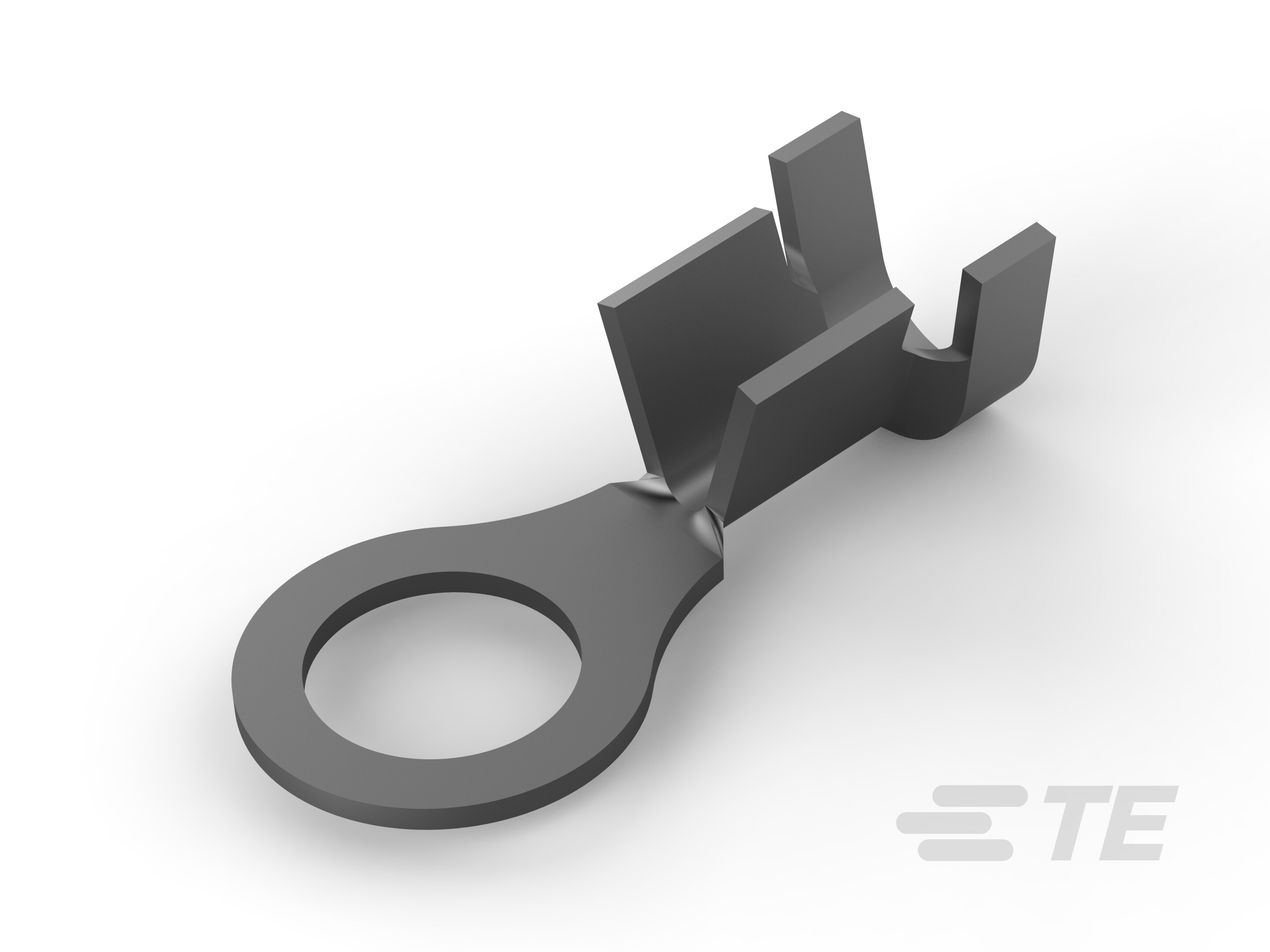

Closed Ring Tongue Terminal, 18 – 14 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 170011-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Length - Overall | 0.661 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges | 0.296 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
