PPA00015-3FT
ActivePasternack

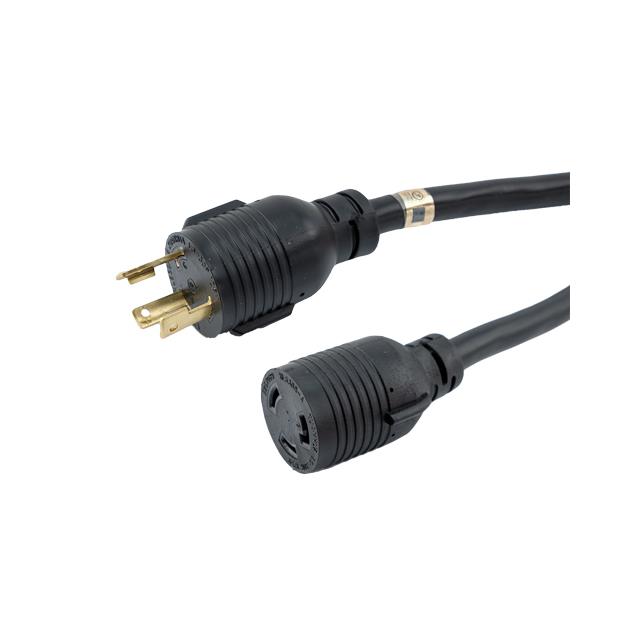

MAINS POWER CORD, NEMA L5-30P TO NEMA L5-30R, 915 MM, 30 A, 125 V, BLACK, PPA00015 SERIES
PPA00015-3FT
ActivePasternack
MAINS POWER CORD, NEMA L5-30P TO NEMA L5-30R, 915 MM, 30 A, 125 V, BLACK, PPA00015 SERIES
Description
General part information
PPA00015-3FT
3.00' (914.4mm) Power Cord Black NEMA L5-30P To NEMA L5-30R SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | PPA00015-3FT |
|---|---|
| 1st Connector | NEMA L5-30P |
| 2nd Connector | NEMA L5-30R |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 30 A |
| Length | 3 ft |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 10 AWG |
