TS080F33IDT
ActiveCTS-Frequency Controls

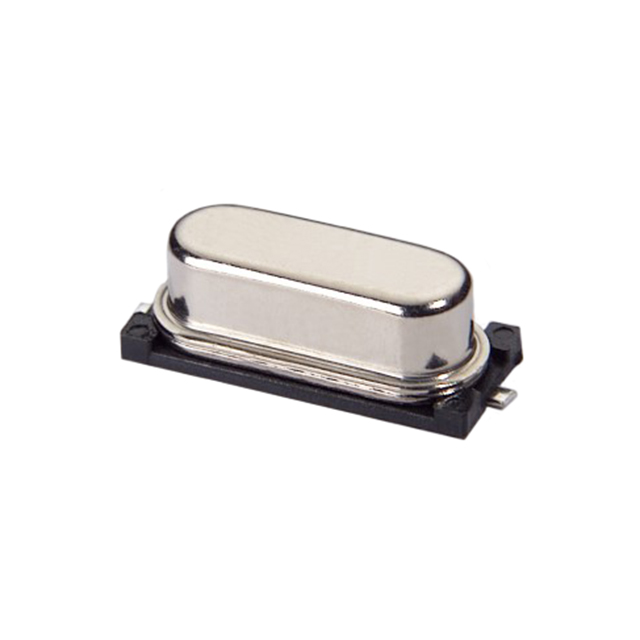

CRYSTAL 8.0000MHZ 18PF SMD
TS080F33IDT
ActiveCTS-Frequency Controls
CRYSTAL 8.0000MHZ 18PF SMD
Description
General part information
TS080F33IDT
8 MHz ±30ppm Crystal 18pF 60 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | TS080F33IDT |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.169 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | HC-49/US |
| Package Name | HC-49/US |
| Size / Dimension Length | 0.437 in |
| Size / Dimension Width | 0.19 in |
| Type | MHz Crystal |
