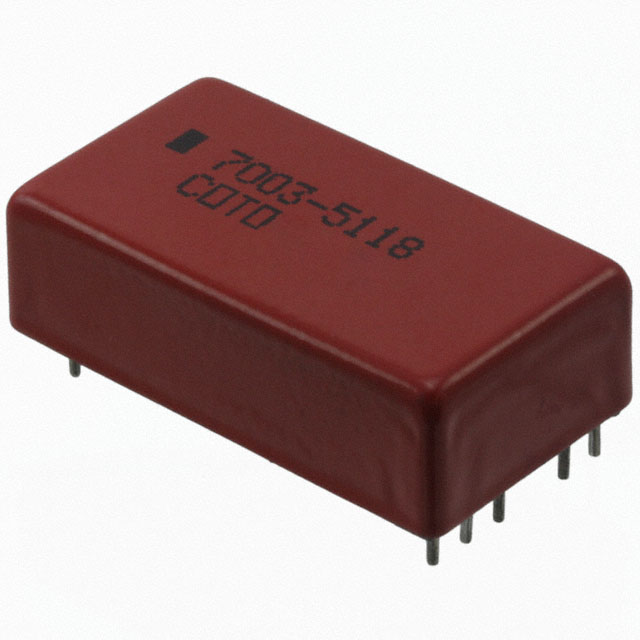

7003-5118
ObsoleteCoto Technology
RELAY REED 3PST 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7003-5118
ObsoleteCoto Technology
RELAY REED 3PST 500MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7003-5118 |
|---|---|
| Coil Current | 16.7 mA |
| Coil Resistance | 300 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 500 µs |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 28.18 | |
| 10 | $ 26.77 | |||
| 25 | $ 25.36 | |||
| 50 | $ 23.95 | |||
| 100 | $ 22.54 | |||
Description
General part information
7003-5118
RELAY REED 3PST 500MA 5V
Documents
Technical documentation and resources
