Description
General part information

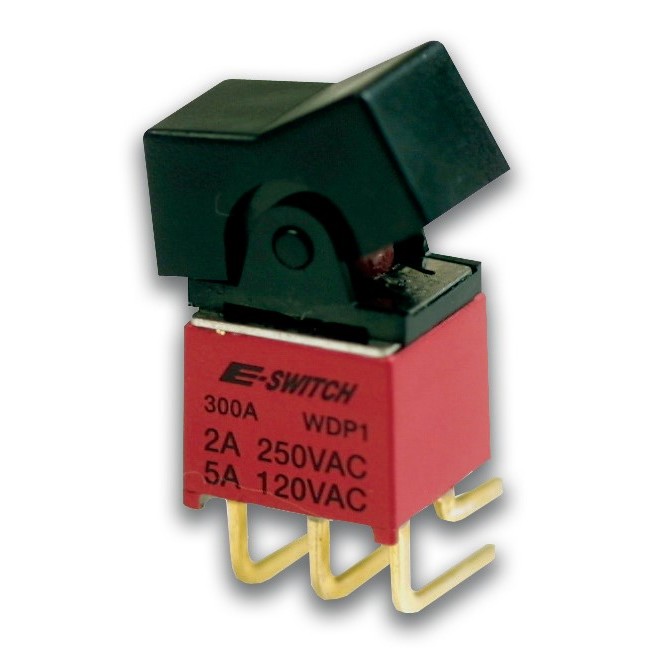

300AWSP4R1BLKM1QE
SPDT ROCKER SWITCH
Technical Specifications
Parameters and characteristics for this part
| Specification | 300AWSP4R1BLKM1QE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Paddle |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 5 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Length | 13.14 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 7.2 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
