SFODSCMIL-10
ActivePasternack
SC-SC SNG ZIP TPUR BLK MIL 10M
SFODSCMIL-10
ActivePasternack
SC-SC SNG ZIP TPUR BLK MIL 10M
Description
General part information
SFODSCMIL-10

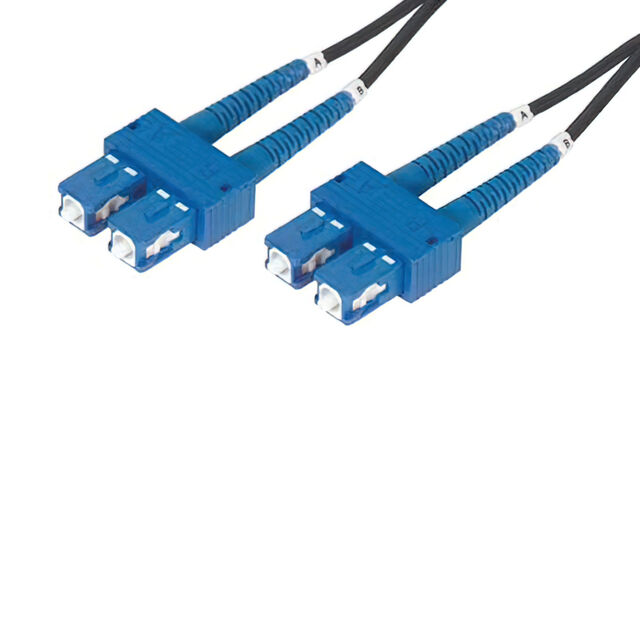

Cable Fiber Optic SC/PC Duplex To SC/PC Duplex 9/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | SFODSCMIL-10 |
|---|---|
| 1st Connector | SC/PC Duplex |
| 2nd Connector | SC/PC Duplex |
| Bend Radius | 50 mm |
| Cable Diameter | 0.12 " |
| Color - Cable | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.5 dB |
| Jacket (Insulation) Material | Polyurethane (PUR) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Type | Duplex, Singlemode, OS1 |
