2232555-1
ActiveTE Connectivity AMP Connectors

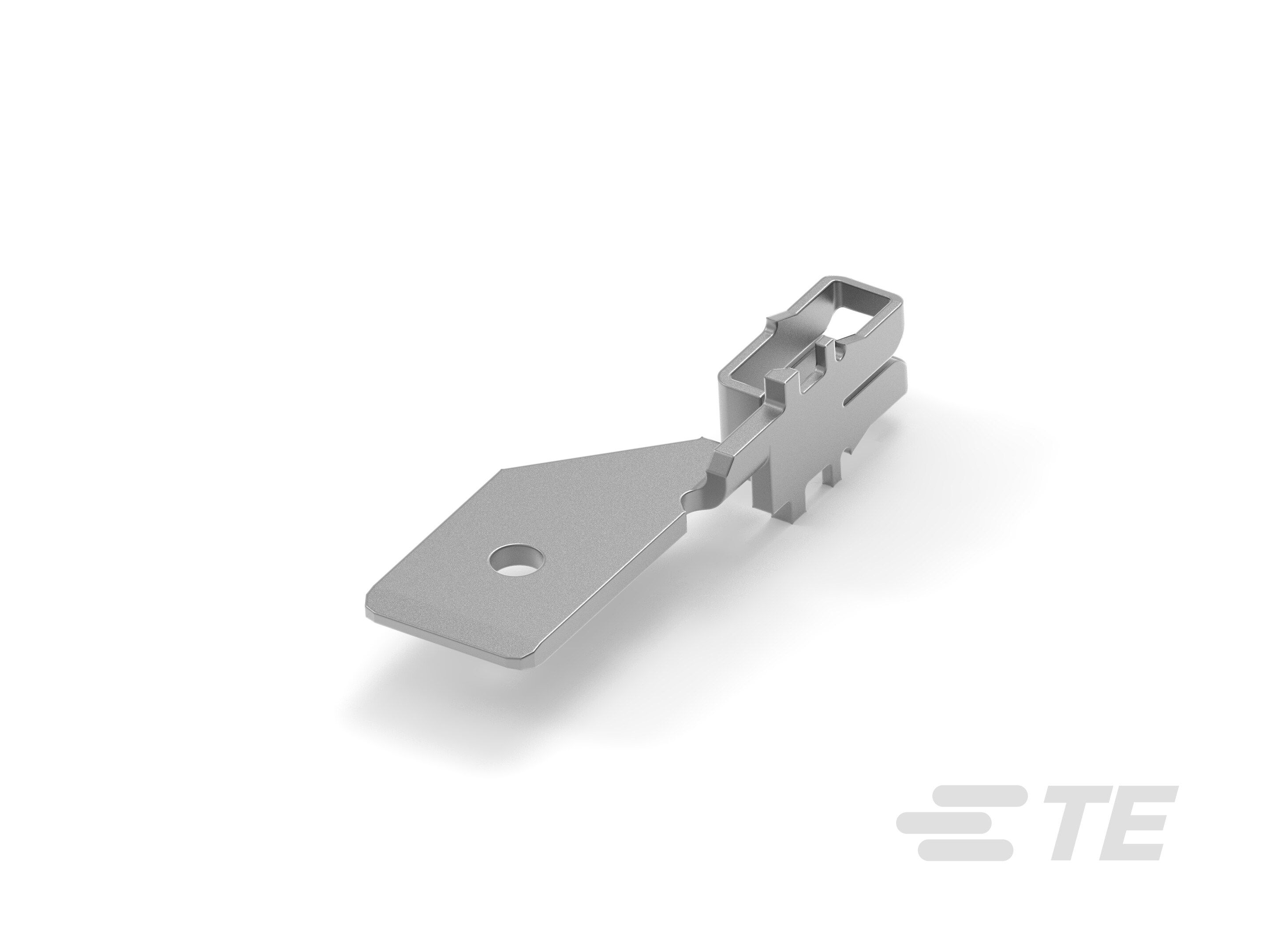

MAG-MATE W/250 CONN TAB TPBR
2232555-1
ActiveTE Connectivity AMP Connectors
MAG-MATE W/250 CONN TAB TPBR
Description
General part information
MAG-MATE 300 Series
Tab, 6.35 mm [.25 in] Tab Width, 24 – 22 AWG Aluminum Wire, .51 – .64 mm Aluminum Wire, .51 – .64 mm Magnet Wire, MAG-MATE 300, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 2232555-1 |
|---|---|
| Features | QC .250 |
| Terminal Type | Box IDC |
| Termination | Twisted, Tab |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
