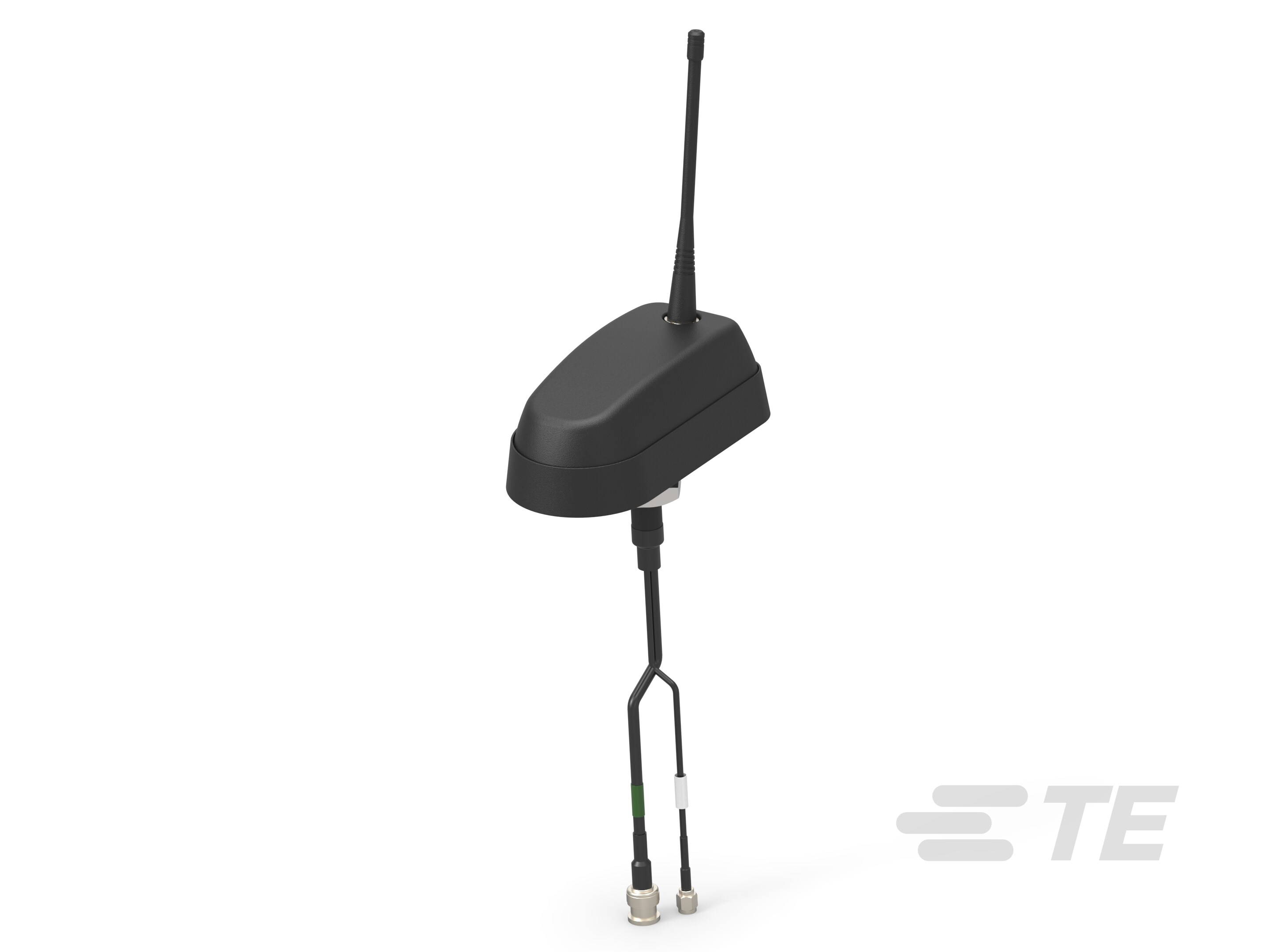

FPL pro Antenna, 2-Port, GNSS, UHF-L000573-06

L000573-06

Active
TE Connectivity AMP Connectors

FPL PRO ANTENNA, 2-PORT, GNSS, UHF

Find alt
FPL pro Antenna, 2-Port, GNSS, UHF-L000573-06

L000573-06

Active
TE Connectivity AMP Connectors

FPL PRO ANTENNA, 2-PORT, GNSS, UHF

Find alt

Description

General part information

L000573-06

Shark Fin Antenna, Multi Band, Vehicular, External Mount, Stud Mount, SMA, Omnidirectional, Multiple Ports, 3 < 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationL000573-06
Antenna TypeModule
ApplicationsWi-Fi, UHF, TETRA, GNSS
FeaturesCable, LNA, 5m
Frequency (Center/Band)6.562GHz, 410MHz, 1.582GHz, 1.583GHz, 5.45GHz, 2.45GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum470 MHz
Frequency Range (Band 1) Minimum350 MHz
Frequency Range (Band 2) Maximum1.606 GHz
Frequency Range (Band 2) Minimum1.559 GHz
Frequency Range (Band 3) Maximum1.607 GHz
Frequency Range (Band 3) Minimum1.559 GHz
Frequency Range (Band 4) Maximum2.5 GHz
Frequency Range (Band 4) Minimum2.4 GHz
Frequency Range (Band 5) Maximum6 GHz
Frequency Range (Band 5) Minimum4.9 GHz
Frequency Range (Band 6) Maximum7.125 GHz
Frequency Range (Band 6) Minimum6 GHz
Gain4 dBi, 8 dBi, 5 dBi, 28 dBi, 36 dBi
Height (Max)1.913 in
Ingress ProtectionIP69K, IP67
Mounting TypeStud
Number of Bands6
Power - Max30 W
RF Family/StandardNavigation, General ISM
TerminationSMC Male, BNC Male
VSWR2.5, 2
VSWR Maximum2.5
VSWR Minimum2
