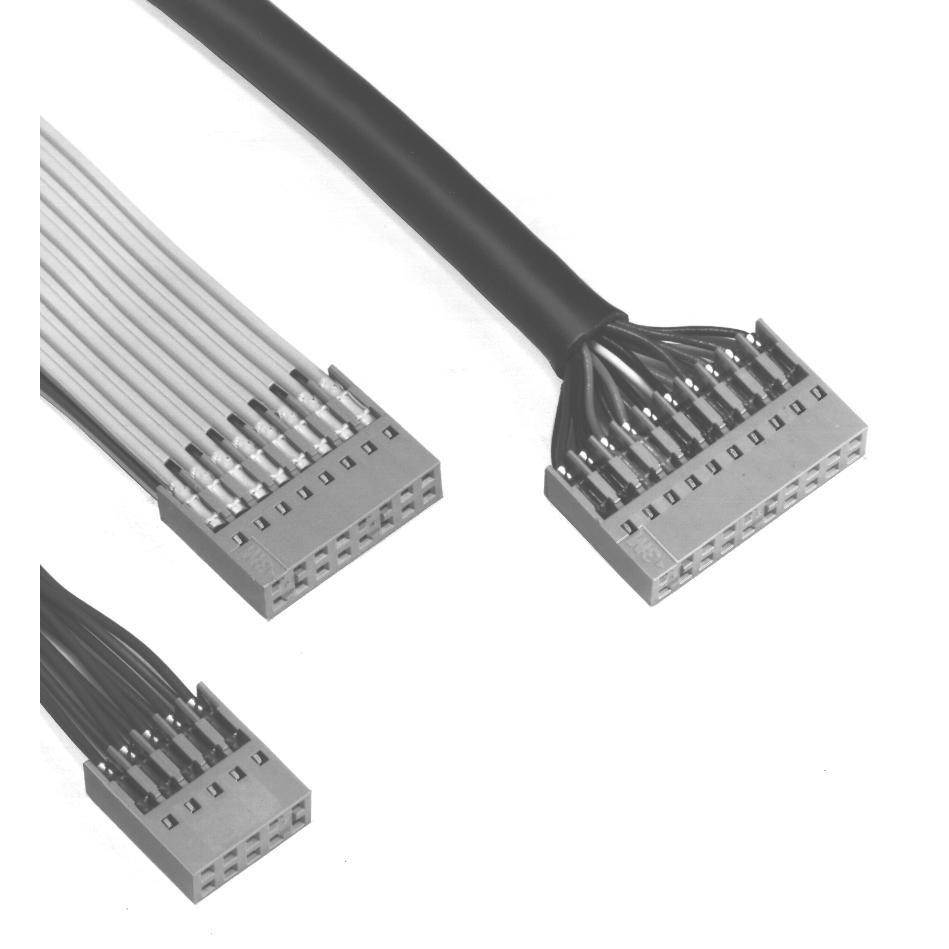

CHG-2060-001010-KEP
Active3M Electronic Specialty
HEADER CONNECTOR,CABLE MOUNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL
CHG-2060-001010-KEP
Active3M Electronic Specialty
HEADER CONNECTOR,CABLE MOUNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL
Description
General part information
CHG-2060-001010-KEP
HEADER CONNECTOR,CABLE MOUNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL
Technical Specifications
Parameters and characteristics for this part
| Specification | CHG-2060-001010-KEP |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
| Wire Gauge | Solid or Stranded, 24 AWG, 22 AWG, Stranded |
| Wire Type | Ribbon Cable, Discrete |
