PCNM2512K2R00FST5
ActiveVishay Dale Thin Film
RES SMD 2 OHM 1% 6W 2512
PCNM2512K2R00FST5
ActiveVishay Dale Thin Film
RES SMD 2 OHM 1% 6W 2512
Description
General part information
PCNM2512K2R00FST5

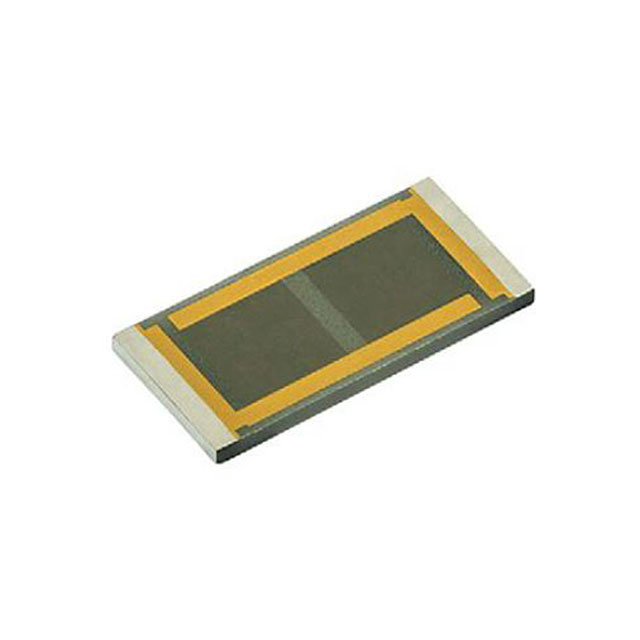

2 Ohms ±1% 6W Chip Resistor 2512 (6432 Metric) Flame Proof, Moisture Resistant, Non-Magnetic, Safety Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PCNM2512K2R00FST5 |
|---|---|
| Composition | Thin Film |
| Features | Flame Proof, Safety, Moisture Resistant, Non-Magnetic |
| Height - Seated (Max) | 0.018 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6432 Metric), 2512 (6332 Metric) |
| Package Name | 2512 |
| Power (Watts) | 6 W |
| Resistance | 2 Ohm |
| Size / Dimension Length | 0.259 in |
| Size / Dimension Width | 0.124 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
