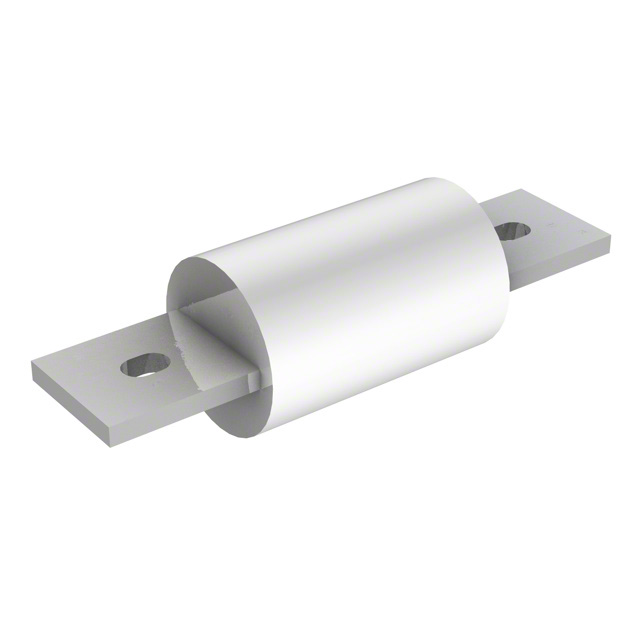

DFJ-225
ActiveEaton - Electronics Division
FUSE CRTRDGE 225A 600VAC/450VDC
DFJ-225
ActiveEaton - Electronics Division
FUSE CRTRDGE 225A 600VAC/450VDC
Description
General part information
DFJ-225
225A 600 VAC 450 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | DFJ-225 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | J |
| Current Rating | 225 A |
| Fuse Type | Cartridge |
| Melting I²t | 11420 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 2.11 in |
| Size / Dimension Length | 7.13 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 450 V |
