1-2308340-1
ActiveTE Connectivity AMP Connectors

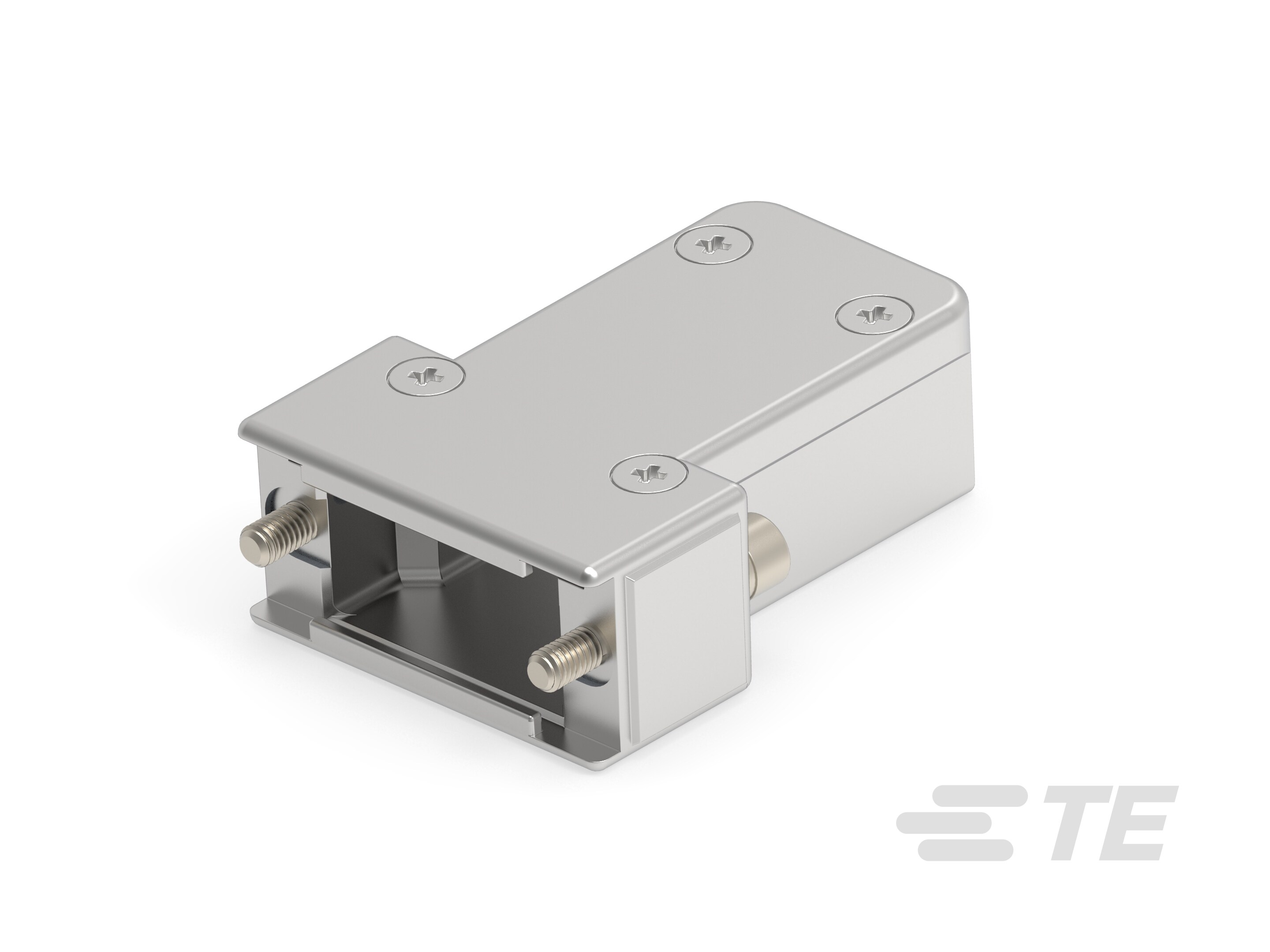

D-SUB BACKSHELLS FULL METAL HOODS SIZE 1
1-2308340-1
ActiveTE Connectivity AMP Connectors
D-SUB BACKSHELLS FULL METAL HOODS SIZE 1
Description
General part information
1-2308340-1
Shielded, Backshell, Zinc, Straight, 1 Shell Size, 15 / 9 Position, Crimp Ferrule Termination, Rail D-Sub Backshells
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2308340-1 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 9pos, HD15pos |
| Compatible Shell Size | E |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware |
| Material | Zinc |
| Number of Positions | 15, 9 |
| Number of Positions (Max) | 15 |
| Number of Positions (Min) | 9 |
| Primary Material | Metal |
| Shielding | Shielded |
