10132449-0821GLF
ActiveAmphenol ICC (FCI)

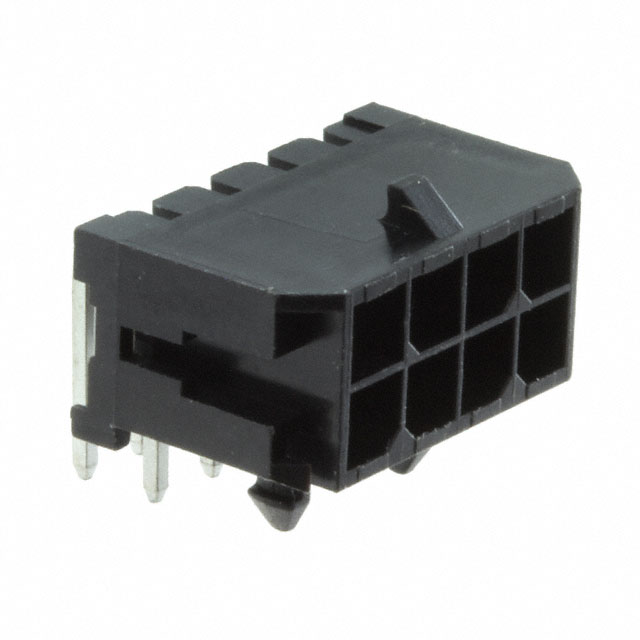

CONN HEADER R/A 8POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
10132449-0821GLF
ActiveAmphenol ICC (FCI)
CONN HEADER R/A 8POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10132449-0821GLF |
|---|---|
| Applications | Telecommunications, General Purpose, Military, Medical |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 60 Áin |
| Contact Finish Thickness - Mating | 1.52 Ám |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Board Lock, Glow Wire Compliant |
| Insulation Color | Black |
| Insulation Height | 0.343 in |
| Insulation Height | 8.71 mm |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.27 | |
| 10 | $ 0.97 | |||
| 80 | $ 0.76 | |||
| 440 | $ 0.63 | |||
| 945 | $ 0.58 | |||
| 4900 | $ 0.49 | |||
| 10000 | $ 0.46 | |||
Description
General part information
10132449 Series
Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm)
