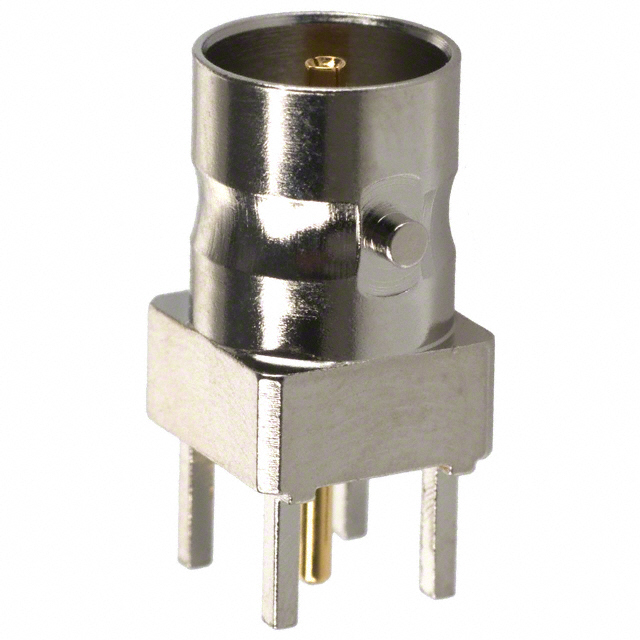

Specification	031-70249

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC, Mini
Connector Type	Recepture, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Housing Color	Silver
Impedance	75 Ohm
Insertion Loss	0.1 dB
Mating Cycles	500 cycles
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

031-70 Series

Part	Number of Ports	Mounting Type	Center Contact Material	Impedance	Frequency - Max	Housing Color	Fastening Type	Connector Style	Connector Type	Contact Termination	Shield Termination	Cable Group	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Includes Total Count	Includes	Mating Cycles	Body Finish	Body Material	Features	Mounting Feature	Insertion Loss	Voltage Rating
McGill Microwave Systems 031-70558-12G	1	Free Hanging (In-Line)	Brass	75 Ohm	12 Gbps	Silver	Bayonet Lock	BNC	Male Pin Plug	Crimp	Crimp	Belden 4694P	Polytetrafluoroethylene (PTFE)	85 °C	-30 °C	Gold	3 pcs	Connector Contact Ferrule	500 cycles	Nickel	Phosphor Bronze
McGill Microwave Systems 031-70508	2	Panel Mount Right Angle Through Hole	Phosphor Bronze	75 Ohm	1 GHz	Silver	Bayonet Lock	BNC	Female Socket Jack	Solder	Solder		Polypropylene (PP)	85 °C	-55 °C	Gold			500 cycles	Nickel	Zinc Die Cast	Board Lock	Bulkhead Front Side Nut	0.2 dB	500 V
McGill Microwave Systems 031-70555-12G	1	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	12 Gbps	Silver	Bayonet Lock	BNC	Female Socket Jack	Crimp	Crimp	Canare L-3.3CUHD	Polytetrafluoroethylene (PTFE)	85 °C	-30 °C	Gold	3 pcs	Connector Contact Ferrule	500 cycles	Nickel	Brass
McGill Microwave Systems 031-70547-12G	1	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	12 Gbps	Silver	Bayonet Lock	BNC	Female Socket Jack	Crimp	Crimp	Belden 4694R	Polytetrafluoroethylene (PTFE)	85 °C	-30 °C	Gold	2 pcs	Connector Ferrule	500 cycles	Nickel	Brass
McGill Microwave Systems 031-70240	1	Free Hanging (In-Line) Right Angle	Brass Phosphor Bronze	75 Ohm	4 GHz	Silver	Bayonet Lock	BNC	Male Pin Plug	Crimp	Crimp	735A AT&T 735 Belden 735A1	Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Gold	3 pcs	Connector Contact Ferrule	500 cycles	Nickel	Brass			0.2 dB	500 V
McGill Microwave Systems 031-70526-13	1	Board Edge End Launch Panel Mount	Beryllium Copper	75 Ohm	12 Gbps	Silver	Bayonet Lock	BNC	Female Socket Jack	Solder	Solder		Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Gold	3 pcs	Connector Lockwasher Nut	500 cycles	Nickel	Brass		Bulkhead Front Side Nut
McGill Microwave Systems 031-70526-21	1	Board Edge End Launch Panel Mount	Beryllium Copper	75 Ohm	12 Gbps	Silver	Bayonet Lock	BNC	Female Socket Jack	Solder	Solder		Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Gold	3 pcs	Connector Lockwasher Nut	500 cycles	Nickel	Brass		Bulkhead Front Side Nut
McGill Microwave Systems 031-70018	1	Panel Mount	Beryllium Copper	75 Ohm	4 GHz	Silver	Bayonet Lock	BNC	Female Socket Jack	Solder Cup	Solder		Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Gold	3 pcs	Connector Lockwasher Nut	500 cycles	Nickel	Brass	Extended Insulation	Bulkhead Rear Side Nut	0.2 dB	500 V
McGill Microwave Systems 031-70298	1	Panel Mount	Phosphor Bronze	75 Ohm	4 GHz	Silver	Bayonet Lock	BNC	Female Socket Jack	Crimp	Crimp	735A AT&T 735 Belden 735A1	Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Gold	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut	500 cycles	Nickel	Brass		Bulkhead Front Side Nut	0.2 dB	500 V
McGill Microwave Systems 031-70567-12G	1	Panel Mount	Phosphor Bronze	75 Ohm	12 Gbps	Silver	Bayonet Lock	BNC	Female Socket Jack	Crimp	Crimp	Belden 4505R	Polytetrafluoroethylene (PTFE)	85 °C	-30 °C	Gold	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut	500 cycles	Nickel	Brass		Bulkhead Front Side Nut
