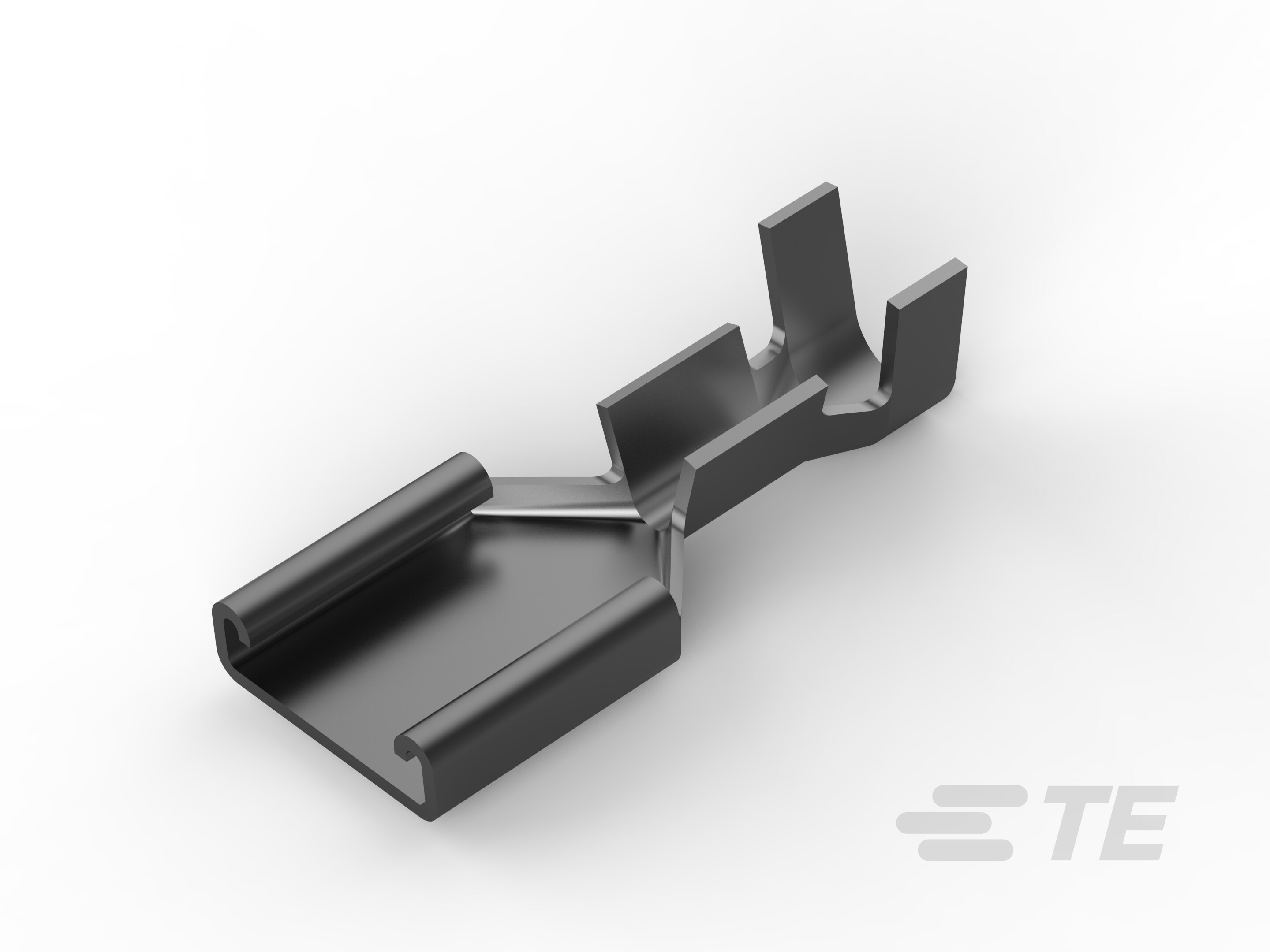

.250 FAST REC IS 1000 TPBR-60384-2

60384-2

Active
TE Connectivity AMP Connectors

.250 FAST REC IS 1000 TPBR ROHS COMPLIANT: YES

Find alt
.250 FAST REC IS 1000 TPBR-60384-2

60384-2

Active
TE Connectivity AMP Connectors

.250 FAST REC IS 1000 TPBR ROHS COMPLIANT: YES

Find alt

Description

General part information

60384-2

Quick Disconnect Receptacle, 20 – 16 AWG, .51 – 1.31 mm² Wire, 1000 – 3000 CMA, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, AMPLIVAR

Technical Specifications

Parameters and characteristics for this part

Specification60384-2
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Length - Overall0.69 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.28 in
Tab Thickness0.032 in
Tab Width0.25 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)16 AWG
