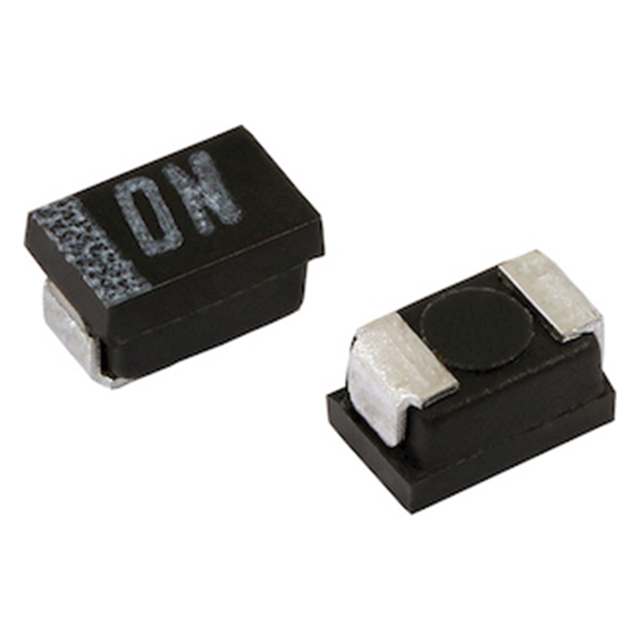

TMCP1D334MTRF
ActiveVishay Dale
CAP TANT 0.33UF 20% 20V 0805
TMCP1D334MTRF
ActiveVishay Dale
CAP TANT 0.33UF 20% 20V 0805
Description
General part information
TMCP1D334MTRF
0.33 µF Molded Tantalum Capacitors 20 V 0805 (2012 Metric) 22Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCP1D334MTRF |
|---|---|
| Capacitance | 0.33 µF |
| ESR (Equivalent Series Resistance) | 22 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.047 in |
| Manufacturer Size Code | P |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 20 V |
