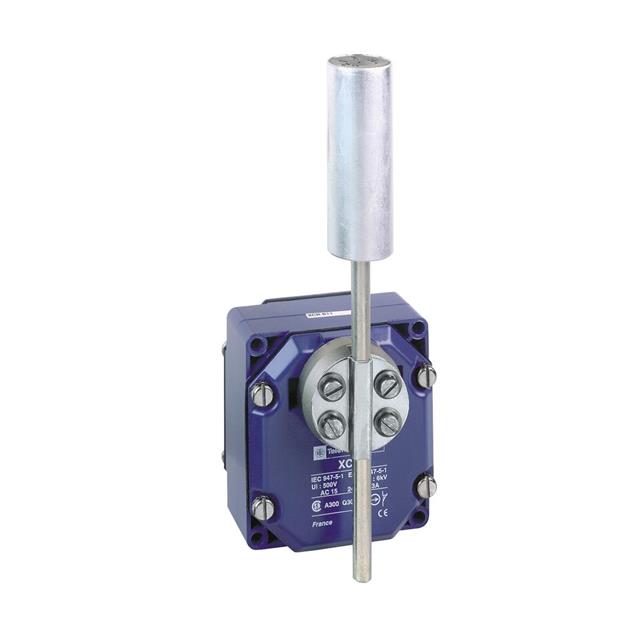

Specification	XCRT215

Actuator Type	Side Rotary, Rod Spring
Circuit	DPDT
Current Rating	3 A, 270 mA
Electrical Life (Cycles)	5000000 Cycles
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	300000 Cycles
Mounting Type	Chassis Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	240 V
Voltage Rating - DC	250 VDC
