ICE40HX1K-STICK-EVN

Active

Lattice Semiconductor Corporation

EVALUATION KIT, ICE40HX1K FPGA, ICESTICK

Find alt

Alpha

ICE40HX1K-STICK-EVN

Active

Lattice Semiconductor Corporation

EVALUATION KIT, ICE40HX1K FPGA, ICESTICK

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ICE40 Series

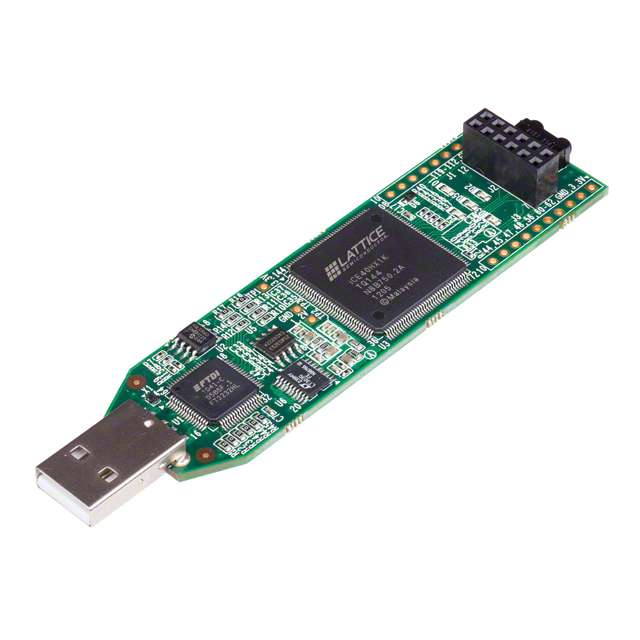

The ICE40HX1K-STICK-EVN is an easy to use, small size board that allows rapid prototyping of system functions at a very low cost using iCE40 FPGA. This board has a high performance, low power iCE40HX1K FPGA onboard and has a USB thumb drive form factor. The iCE40 FPGA family comprises ultra low density (ULD) devices whose low cost, small footprint and extremely small power consumption makes them ideal for a tremendous range of handheld and battery powered applications. The iCE40 FPGAs are unusual in that they are SRAM based, which allows them to be reprogrammed on the fly and/or loaded from an external device like an SPI Flash or a microcontroller. The iCEstick is supported by iCEcube2 design software for HDL development. Programming the onboard iCE40HX-1k device’s SPI flash is done with Lattice diamond programmer.

Technical Specifications

Parameters and characteristics for this part

Specification	ICE40HX1K-STICK-EVN

Contents	Board
For Use With/Related Products	iCE40HX1K
Interconnect System	Pmod
Platform	iCE40 HX FPGA iCEstick
Suggested Programming Environment	iCEcube2
Type	FPGA
Utilized IC / Part	iCE40HX1K

ICE40 Series

Part	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Number of Logic Elements/Cells	Total RAM Bits	Number of LABs/CLBs	Mounting Type	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of I/O	For Use With/Related Products	Utilized IC / Part	Contents	Platform	Type	Suggested Programming Environment
Lattice Semiconductor Corporation ICE40HX8K-CB132	8 mm	132-CSBGA	8 mm	100 °C	-40 °C	7680	131072 bits	960	Surface Mount	132-LFBGA CSPBGA	1.14 V	1.26 V	95
Lattice Semiconductor Corporation ICE40LP1K-CM121TR	5 mm	121-UCBGA	5 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	121-VFBGA CSBGA	1.14 V	1.26 V	95
Lattice Semiconductor Corporation ICE40LP1K-SWG16TR1K	1.4 mm	16-WLCSP	1.48 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	16-XFBGA WLCSP	1.14 V	1.26 V	10
Lattice Semiconductor Corporation ICE40LM4K-S-EVN														iCE40LM4K	iCE40LM4K	Board Cable	iCE40 LM FPGA Sensor	FPGA
Lattice Semiconductor Corporation ICE40LP4K-CM225	7 mm	225-UCBGA	7 mm	100 °C	-40 °C	3520	81920 bits	440	Surface Mount	225-VFBGA	1.14 V	1.26 V	167
Lattice Semiconductor Corporation ICE40HX8K-B-EVN														iCE40HX8K	iCE40HX8K	Board Cable	iCE40 HX FPGA Breakout	FPGA	iCEcube2
Lattice Semiconductor Corporation ICE40HX4K-BG121TR	9 mm	121-caBGA	9 mm	100 °C	-40 °C	3520	81920 bits	440	Surface Mount	121-TFBGA	1.14 V	1.26 V	93
Lattice Semiconductor Corporation ICE40LP384-CM36	2.5 mm	36-UCBGA	2.5 mm	100 °C	-40 °C	384		48	Surface Mount	36-VFBGA	1.14 V	1.26 V	25
Lattice Semiconductor Corporation ICE40HX1K-TQ144	20 mm	144-TQFP	20 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	144-LQFP	1.14 V	1.26 V	96
Lattice Semiconductor Corporation ICE40LP1K-CB121	6 mm	121-CSBGA	6 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	121-VFBGA CSBGA	1.14 V	1.26 V	92
