1411090

Active

Phoenix Contact

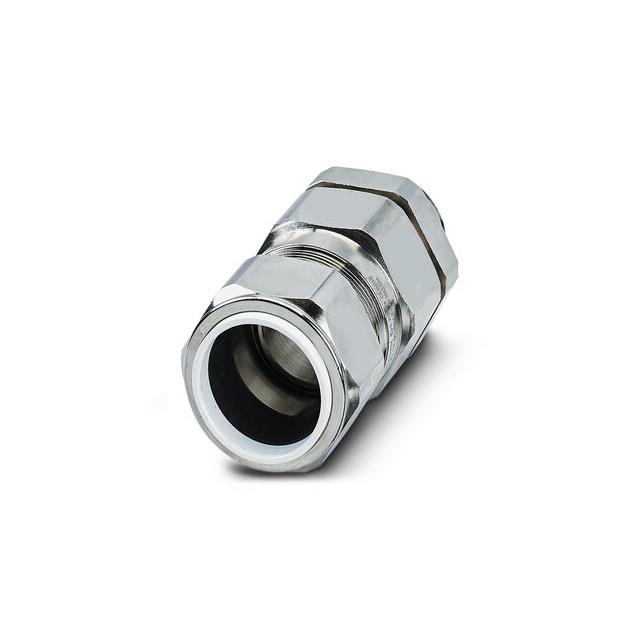

CABLE GLND 12.5-20.9MM M20 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLND 12.5-20.9MM M20 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411090	G-ESSWU Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-60 °C	-60 °C
Outside Cable Diameter (Max)	-	15.9 - 33.9 mm
Outside Cable Diameter (Max)	-	0.626 - 2.594 "
Outside Cable Diameter (Max)	-	65.9 mm
Outside Cable Diameter (Max) [Max]	0.823 "	0.823 "
Outside Cable Diameter (Max) [Max]	20.9 mm	20.9 mm
Outside Cable Diameter (Min)	12.5 mm	12.5 mm
Outside Cable Diameter (Min)	-	9.5 - 54.6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.492 in	0.374 - 2.15 in
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M20	M20, M63, M32
Type	Cable Gland	Cable Gland

CABLE GLAND 9.5-15.9MM M20 BRASS

Part	Material	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Ingress Protection	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)
Phoenix Contact 1411088	Brass, Nickel Plated	Cable Gland	0.374 in	9.5 mm	Silver	IP66, IP67, IP68	O-Ring, Seal	130 °C	-60 °C	15.9 mm	0.626 "	0.591 in	15 mm	M20
Phoenix Contact 1411090	Brass, Nickel Plated	Cable Gland	0.492 in		Silver	IP66, IP67, IP68	O-Ring, Seal	130 °C	-60 °C			0.591 in	15 mm	M20	0.823 "	20.9 mm	12.5 mm
Phoenix Contact 1411102	Brass, Nickel Plated	Cable Gland	2.15 in	54.6 mm	Silver	IP66, IP67, IP68	O-Ring, Seal	130 °C	-60 °C		2.594 in	0.591 in	15 mm	M63				65.9 mm
Phoenix Contact 1411094	Brass, Nickel Plated	Cable Gland	0.933 in	23.7 mm	Silver	IP66, IP67, IP68	O-Ring, Seal	130 °C	-60 °C	33.9 mm	1.335 "	0.591 in	15 mm	M32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.42

General part information

Cable Gland Brass, Nickel Plated M20 Silver
