HG4958-23P
ActivePasternack
ANTPANEL 4.9-5.8GHZ 23DBI
HG4958-23P
ActivePasternack
ANTPANEL 4.9-5.8GHZ 23DBI
Description
General part information
HG4958-23P

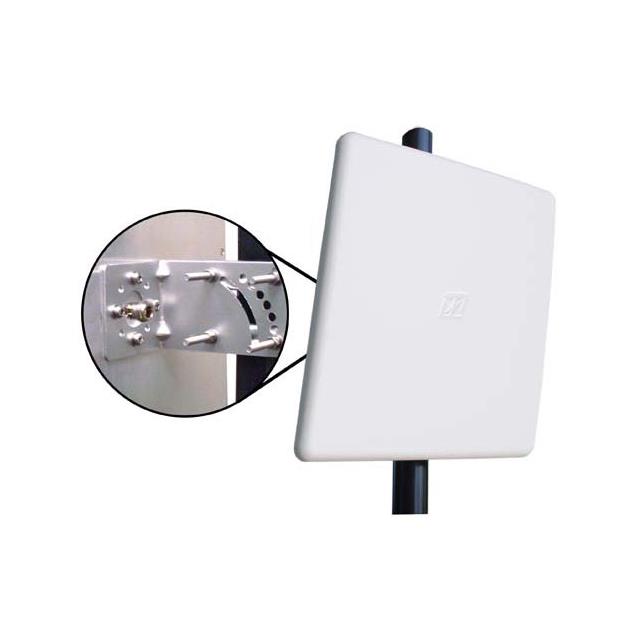

RF ANTENNA 802.11a/n, Wi-Fi, WiMax, WLAN Flat Panel N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG4958-23P |
|---|---|
| Antenna Type | Flat Panel |
| Applications | 802.11a/n, WiMax, WLAN, Wi-Fi |
| Frequency (Center/Band) | 5.375 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 4.9 GHz |
| Gain | 23 dBi |
| Height (Max) | 0.98 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
