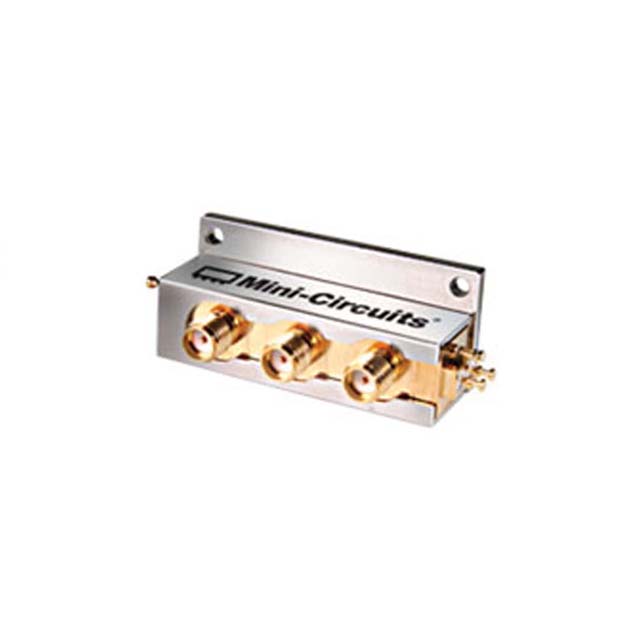

ZX80-DR230-S+
RF Switch IC General Purpose SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | ZX80-DR230-S+ |
|---|---|
| Circuit | SPDT |
| Frequency Range (Low) | DC |
| Frequency Range (Max) | 3 GHz |
| IIP3 | 55 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 1.2 dB |
| Isolation | 48 dB |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| P1dB | 80 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Test Frequency | 3 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 2.7 V |
