2238089-1
ActiveTE Connectivity AMP Connectors
MAG-MATE TAB 31-28 CU / 29-27 AL TPBR
2238089-1
ActiveTE Connectivity AMP Connectors
MAG-MATE TAB 31-28 CU / 29-27 AL TPBR
Description
General part information
MAG-MATE 187 Series

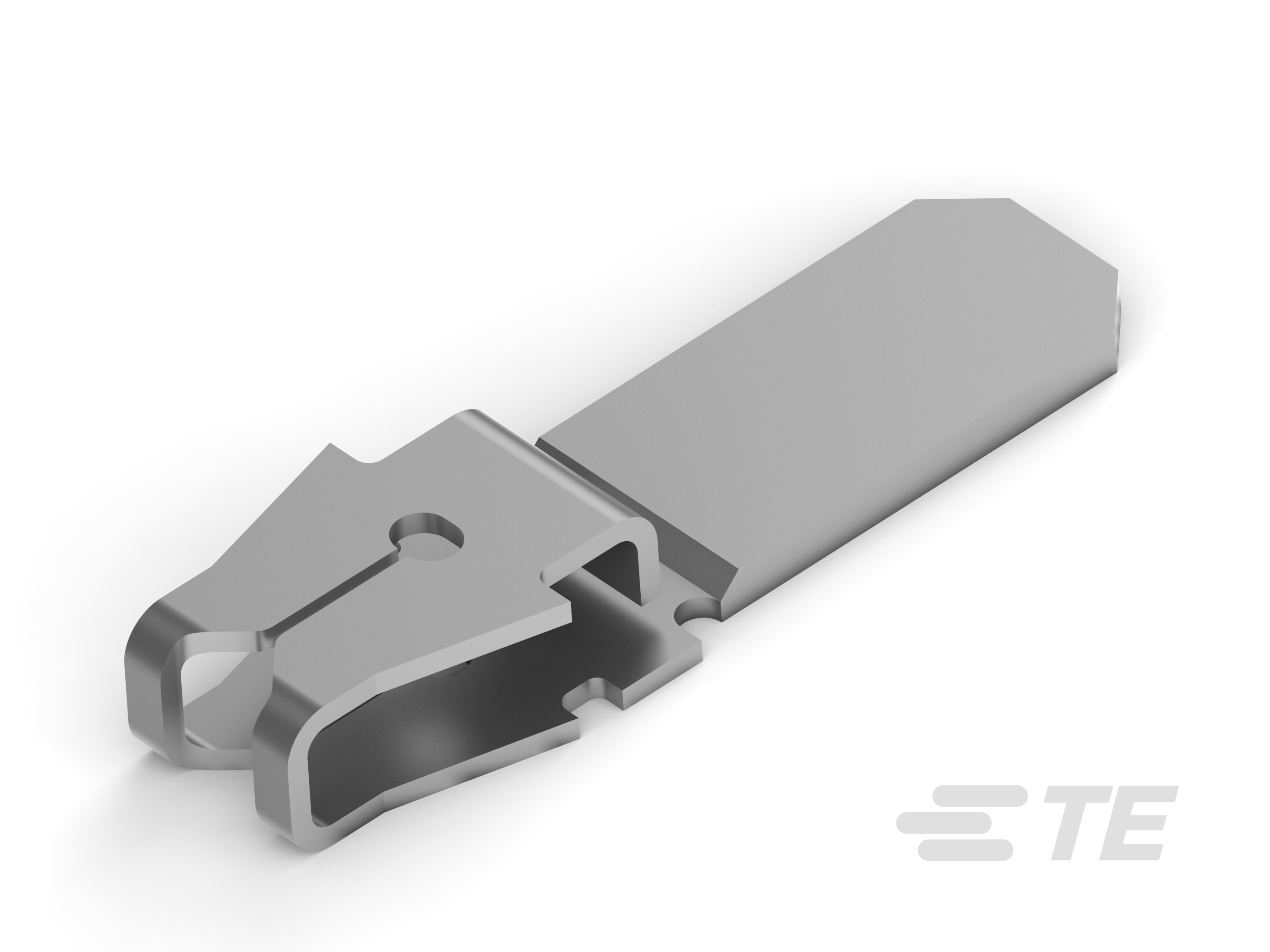

Tab, 2.79 mm [.11 in] Tab Width, Insulation Displacement (IDC), Tin Plating, 10.97 mm [.432 in] Length, Reel, MAG-MATE 187, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 2238089-1 |
|---|---|
| Features | QC .110 |
| Size | 1 |
| Style | 187 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge (AWG) (Max) | 31 AWG |
| Wire Gauge (AWG) (Min) | 27 AWG |
