53246-1
ActiveTE Connectivity AMP Connectors
TERMINAL,PG SPR SPD 12-10 6 ROHS COMPLIANT: YES
53246-1
ActiveTE Connectivity AMP Connectors
TERMINAL,PG SPR SPD 12-10 6 ROHS COMPLIANT: YES
Description
General part information
53246-1

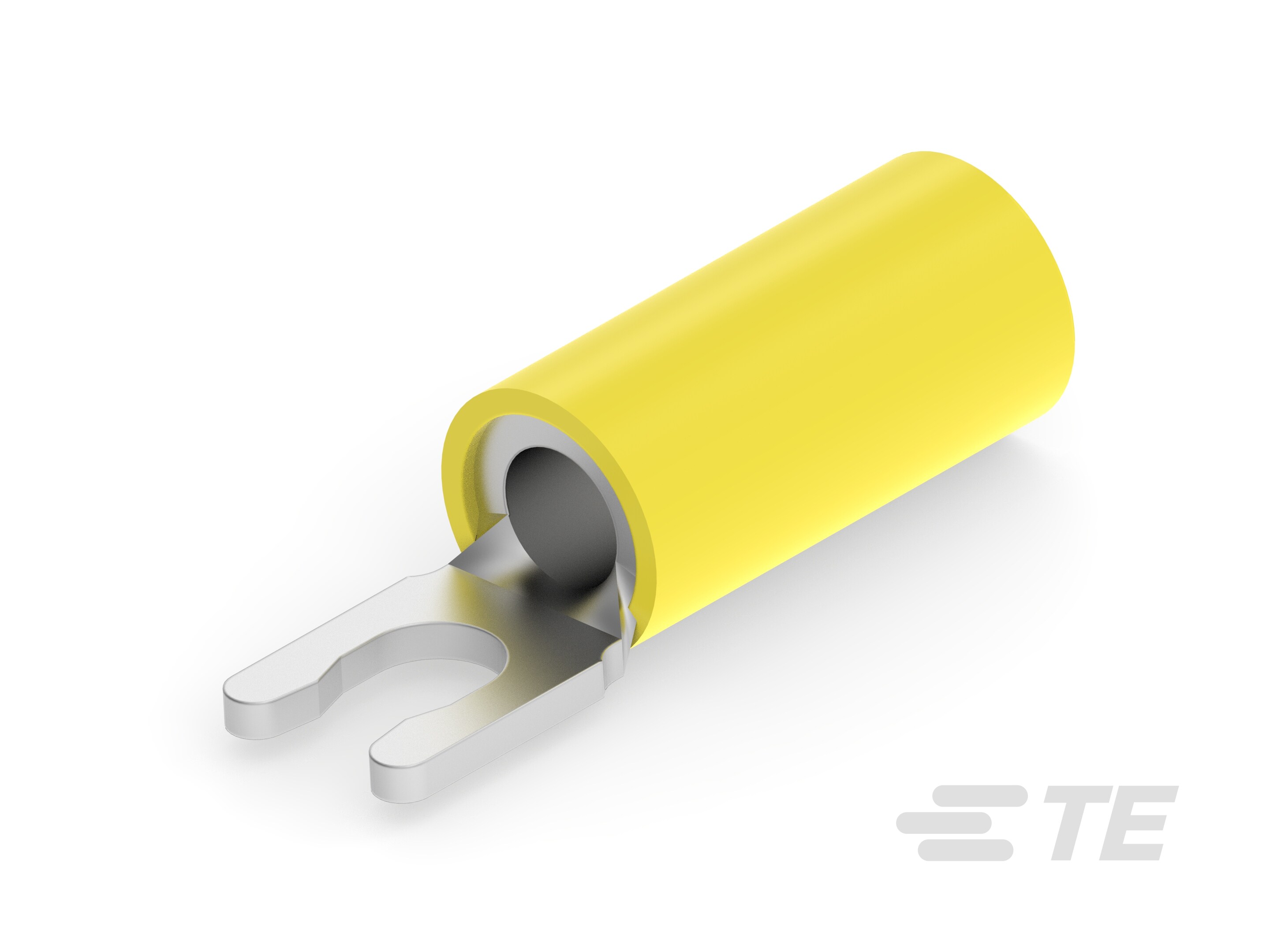

Spring Spade Terminal, 12 – 10 AWG, #6 / M3.5 Stud, 3.56 mm [.14 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 53246-1 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.959 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Snap, Spring |
| Termination | Crimp |
| Width - Outer Edges | 0.25 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
