1.5KE540CA

Active

SMC Diode Solutions

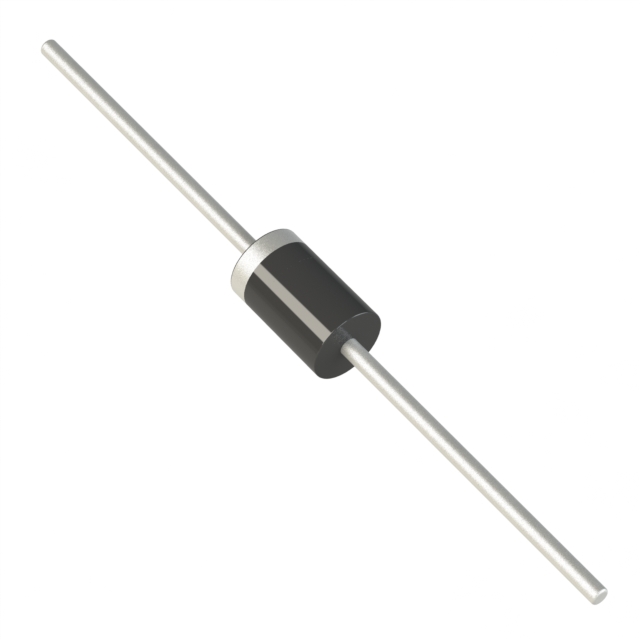

TVS DIODE DO201AD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5KE540CA

Active

SMC Diode Solutions

TVS DIODE DO201AD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5KE540CA	1.5KE Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	-	4 - 143 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-65 °C	-65 °C
Package / Case	DO-201AD, Axial	DO-201AD, Axial
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	DO-201AD	DO-201AD
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min)	-	6.45 - 418 V
Voltage - Clamping (Max) @ Ipp	-	18.2 - 344 V
Voltage - Clamping (Max) @ Ipp	-	10.5 - 600 V
Voltage - Reverse Standoff (Typ)	-	5.8 - 376 V

1.5KE Series

TVS DIODE 85.5VWM 137VC DO201AD

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Power - Peak Pulse	Power - Peak Pulse	Mounting Type	Type	Package / Case	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]
SMC Diode Solutions 1.5KE100CA	175 ░C	-65 °C	General Purpose	95 V	1	137 V	11 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	85.5 V
SMC Diode Solutions 1.5KE200A	175 ░C	-65 °C	General Purpose	190 V			5.5 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	171 V	1	274 V
SMC Diode Solutions 1.5KE30CA	175 ░C	-65 °C	General Purpose	28.5 V	1		36 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	25.6 V		41.4 V
SMC Diode Solutions 1.5KE8.2CA	175 ░C	-65 °C	General Purpose	7.79 V	1		124 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	7.02 V		12.1 V
SMC Diode Solutions 1.5KE7.5CA	175 ░C	-65 °C	General Purpose	7.13 V	1		132 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	6.4 V		11.3 V
SMC Diode Solutions 1.5KE400A	175 ░C	-65 °C	General Purpose	380 V			4 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	342 V	1	548 V
SMC Diode Solutions 1.5KE62A	175 ░C	-65 °C	General Purpose	58.9 V			17.7 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	53 V	1	85 V
SMC Diode Solutions 1.5KE160A	175 ░C	-65 °C	General Purpose	152 V			6.8 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	136 V	1	219 V
SMC Diode Solutions 1.5KE440CA	175 ░C	-65 °C	General Purpose	418 V	1		4 A	DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial	376 V		600 V
SMC Diode Solutions 1.5KE480A	175 ░C	-65 °C	General Purpose					DO-201AD	1.5 kW	1500 W	Through Hole	Zener	DO-201AD, Axial		1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.86
		10	$ 0.71
		100	$ 0.55
		500	$ 0.47
	Tape & Reel (TR)	1200	$ 0.32
		1250	$ 0.46
		2500	$ 0.43
		6250	$ 0.41
		12500	$ 0.39

Description

General part information

1.5KE Series

Clamp Ipp Tvs Diode Through Hole DO-201AD
