AB-FA02450-19700-8A1

Active

American Bright Optoelectronics Corporation

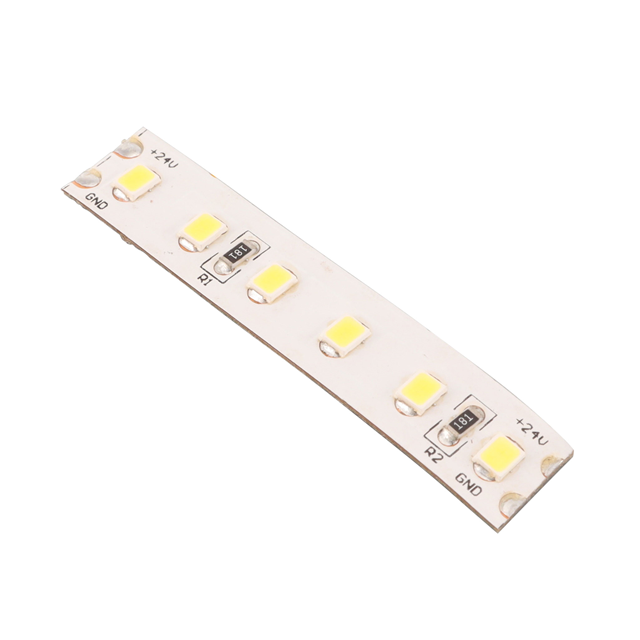

LED MOD AB-FA WH LNR STRP 5000K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA WH LNR STRP 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FA02450-19700-8A1

CCT (K)	5000 K
Color	Cool, White
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Test	330 mA
Features	IP20
Height [z]	1.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	96 lm/W
Luminous Flux @ Current/Temperature	760 lm
Size / Dimension	50.00mm L per Segment
Size / Dimension [x]	5000 mm
Size / Dimension [y]	8 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

LED MOD AB-FA WH LNR STRP 5000K

Part	Color	Configuration	Viewing Angle	Current - Test	Features	CCT (K)	Lumens/Watt @ Current - Test	Lens Type	Voltage - Forward (Vf) (Typ)	Type	Height [z]	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	CRI (Color Rendering Index)
American Bright Optoelectronics Corporation AB-FA02450-19700-8A1	Cool, White	Flexible, Linear Light Strip	120 °	330 mA	IP20	5000 K	96 lm/W	Flat	24 V	LED Module	1.6 mm	760 lm	8 mm	5000 mm	50.00mm L per Segment	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FA White, Cool Linear Light Strip, Flexible
