Description
General part information

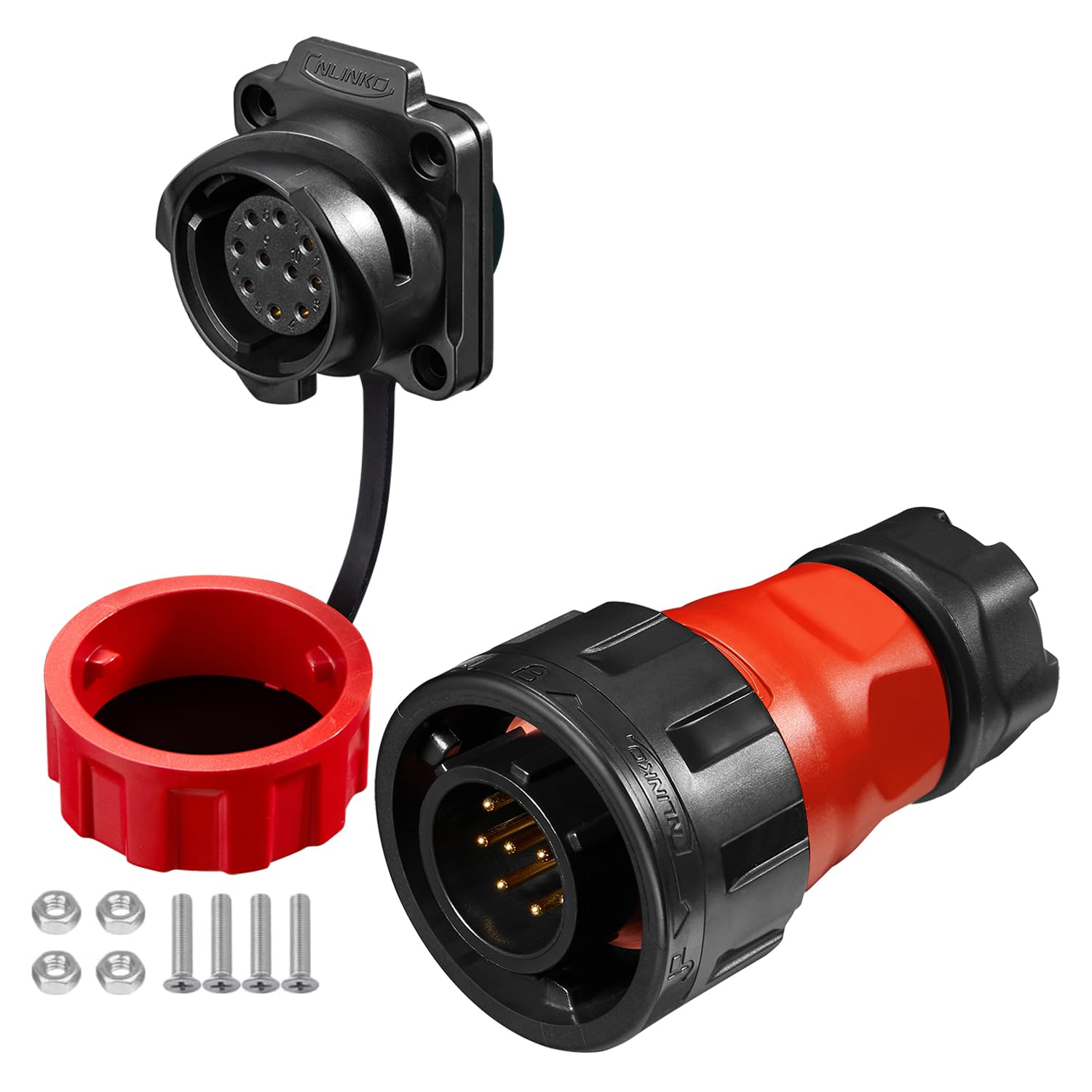

YM-24-C10PE-02-001A/YM-24-J10SX-02-401A
YM24 10P CONN PLUG RCPT SOLDER
Technical Specifications
Parameters and characteristics for this part
| Specification | YM-24-C10PE-02-001A/YM-24-J10SX-02-401A |
|---|---|
| Cable Opening (Max) | 0.413 in |
| Cable Opening (Min) | 0.276 in |
| Color | Red, Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Copper, Alloy |
| Current Rating | 10 A |
| Fastening Type | Bayonet |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67, IP65 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 10 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Data |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 500 V |
