AD024-00E-TR
ActiveNVE Corp/Sensor Products

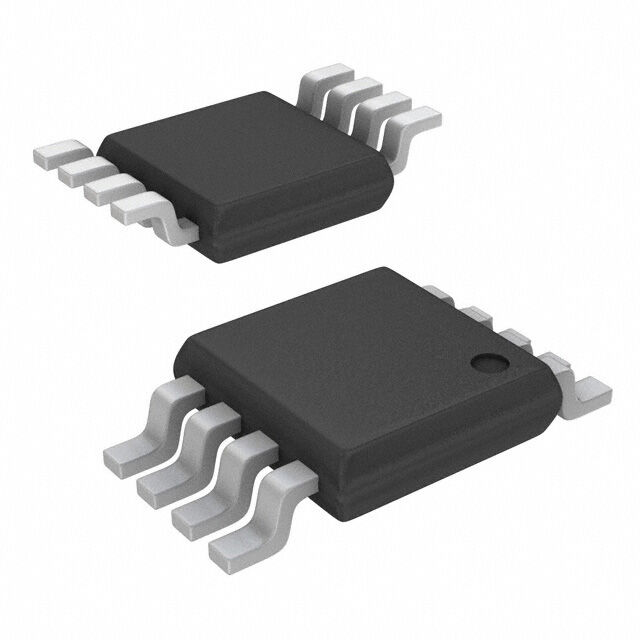

MAGNETIC SWITCH OMNIPOLAR 8MSOP
AD024-00E-TR
ActiveNVE Corp/Sensor Products
MAGNETIC SWITCH OMNIPOLAR 8MSOP
Description
General part information
AD024-00E-TR
Digital Switch Omnipolar Switch Digital Magnetoresistive 8-MSOP
Technical Specifications
Parameters and characteristics for this part
| Specification | AD024-00E-TR |
|---|---|
| Current - Output (Max) | 24 mA |
| Current - Supply (Max) | 6.5 mA |
| Function | Omnipolar Switch |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital |
| Package Length | 0.118 in |
| Package Name | 8-MSOP, 8-TSSOP, 8-MSOP |
| Package Width | 3 mm |
| Polarization | North Pole, South Pole |
| Sensing Range (Release) | 0.5 mT |
| Sensing Range (Trip) | 3.3 mT |
| Technology | Magnetoresistive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 4.5 V |
