83662 002100

Active

Belden Inc.

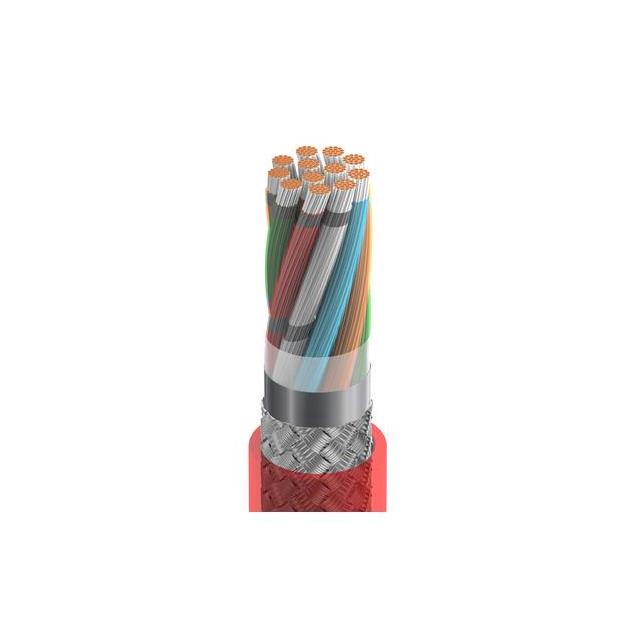

CABLE 12COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83662 002100

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.296 in
Jacket (Insulation) Diameter [diameter]	7.52 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Jacket Color	Usage	Conductor Insulation	Conductor Material	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Coverage	Ratings	Cable Type	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length	Length
Belden Inc. 83662 002100	0.015 in	0.381 mm	12	Red	Audio Control Instrumentation	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	30.5 m	100 ft	200 °C	-70 °C	Aluminum Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	0.296 in	7.52 mm	18 AWG	85 % 100 %	UL Style CMP	Multi-Conductor	Braid Foil	19	30 AWG	300 V
Belden Inc. 83662 002500	0.015 in	0.381 mm	12	Red	Audio Control Instrumentation	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	152.4 m	500 '	200 °C	-70 °C	Aluminum Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	0.296 in	7.52 mm	18 AWG	85 % 100 %	UL Style CMP	Multi-Conductor	Braid Foil	19	30 AWG	300 V
Belden Inc. 83662 0021000	0.015 in	0.381 mm	12	Red	Audio Control Instrumentation	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned			200 °C	-70 °C	Aluminum Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	0.296 in	7.52 mm	18 AWG	85 % 100 %	UL Style CMP	Multi-Conductor	Braid Foil	19	30 AWG	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 32.40

General part information

12 Conductor Multi-Conductor Cable Red 18 AWG Foil, Braid 100.0' (30.5m)
