S-13R1F23-A4T2U3

ABLIC Inc.

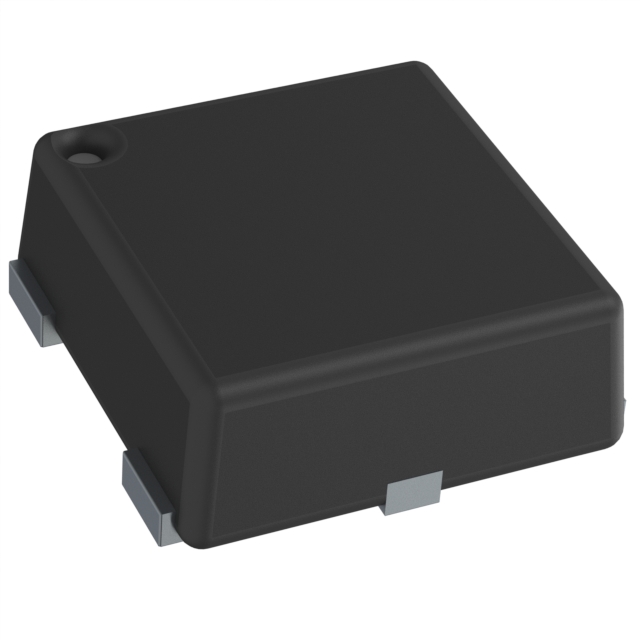

IC REG LIN 2.3V 150MA HSNT-4-B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-13R1F23-A4T2U3

ABLIC Inc.

IC REG LIN 2.3V 150MA HSNT-4-B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-13R1F23-A4T2U3	S-13R1 Series

Control Features	Enable	Enable
Current - Output	150 mA	150 mA
Current - Quiescent (Iq)	1 µA	1 µA
Current - Supply (Max)	9 µA	9 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Flat Leads Exposed Pad	SC-74A, SOT-753, 4-SMD, Flat Leads, SC-82A, SOT-343, 4-SMD, Flat Leads Exposed Pad
Protection Features	Reverse Current, Overcurrent, Thermal Shutdown	Reverse Current, Overcurrent, Thermal Shutdown
PSRR	70 dB	70 dB
Supplier Device Package	HSNT-4-B	SOT-23-5, SNT-4A, SC-82AB, HSNT-4-B
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Output (Min/Fixed)	-	1.2 - 4 V
Voltage - Output (Min/Fixed) [Min]	2.3 V	2 - 2.3 V
Voltage Dropout (Max) [Max]	0.28 V	0.23 - 0.88 V

S-13R1 Series

IC REG LINEAR 3.7V 150MA SOT23-5

...

Part	Voltage Dropout (Max) [Max]	Control Features	Mounting Type	Current - Supply (Max)	Current - Output	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Protection Features	PSRR	Number of Regulators	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Supplier Device Package	Output Type
ABLIC Inc. S-13R1C37-M5T1U3	0.23 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-74A, SOT-753	3.7 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SOT-23-5	1.81 mOhm
ABLIC Inc. S-13R1F21-M5T1U3	0.28 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-74A, SOT-753	2.1 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SOT-23-5	1.81 mOhm
ABLIC Inc. S-13R1A13-M5T1U3	0.78 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-74A, SOT-753	1.3 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SOT-23-5	1.81 mOhm
ABLIC Inc. S-13R1G37-I4T1U3	0.23 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	4-SMD, Flat Leads	3.7 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SNT-4A	1.81 mOhm
ABLIC Inc. S-13R1H16-M5T1U3	0.48 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-74A, SOT-753	1.6 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SOT-23-5	1.81 mOhm
ABLIC Inc. S-13R1C29-M5T1U3	0.23 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-74A, SOT-753	2.9 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SOT-23-5	1.81 mOhm
ABLIC Inc. S-13R1B31-N4T1U3	0.23 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-82A, SOT-343	3.1 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SC-82AB	1.81 mOhm
ABLIC Inc. S-13R1B15-M5T1U3	0.58 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	SC-74A, SOT-753	1.5 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SOT-23-5	1.81 mOhm
ABLIC Inc. S-13R1E27-A4T2U3	0.28 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	4-SMD, Flat Leads Exposed Pad	2.7 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	HSNT-4-B	1.81 mOhm
ABLIC Inc. S-13R1H14-I4T1U3	0.68 V	Enable	Surface Mount	9 µA	150 mA	5.5 V	4-SMD, Flat Leads	1.4 V	Overcurrent, Reverse Current, Thermal Shutdown	70 dB	1	1 µA	85 °C	-40 °C	Positive	SNT-4A	1.81 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.26
		20000	$ 0.25

Description

General part information

S-13R1 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA HSNT-4-B
