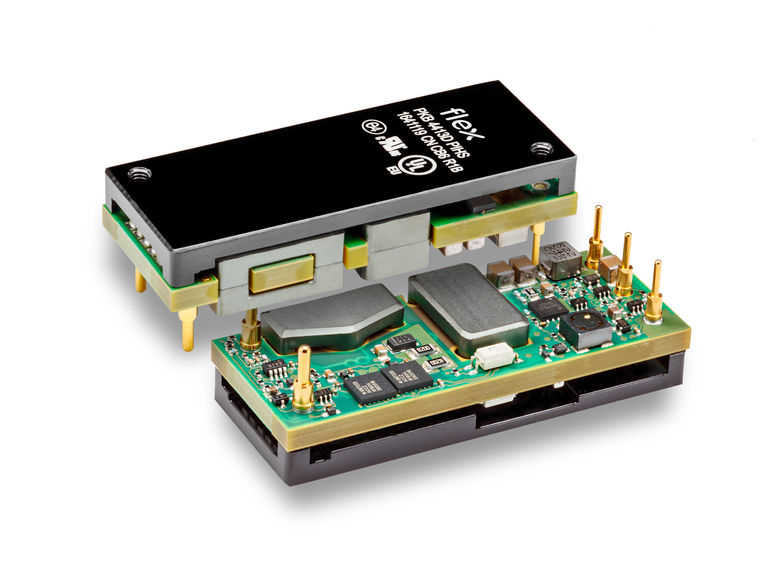

PKB4110CPIHS

Active

Flex Power Modules

DC DC CONVERTER 5V 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKB4110CPIHS

Active

Flex Power Modules

DC DC CONVERTER 5V 150W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PKB411 Series

Isolated Module DC DC Converter 1 Output 5V 30A 36V - 75V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKB4110CPIHS	PKB411 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC, cURus, UL	IEC, cURus, UL, CB, TUV, CSA
Control Features	-	Active Low, Enable
Current - Output (Max) [Max]	30 A	12 - 60 A
Efficiency	94.7 %	91 - 94.7 %
Features	Adjustable Output, Remote On/Off, Baseplate, Remote Sense, Heat Sink	Adjustable Output, Remote On/Off, Baseplate, Remote Sense, Heat Sink
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Eighth Brick	Eighth Brick
Power (Watts)	150 W	108 - 150 W
Size / Dimension	-	8.5 - 13.2 mm
Size / Dimension	-	22.7 mm
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	0.89 in	0.89 in
Size / Dimension [y]	22.7 mm	22.7 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Size / Dimension [z]	0.5 in	0.33 - 0.52 in
Standard Number	62368-1	62368-1
Supplier Device Package	Eighth Brick	Eighth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	72 - 75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	1.5 - 2250 VDC
Voltage - Output 1	5 V	1.8 - 12 V

PKB411 Series

DC DC CONVERTER 5V 150W

Part	Voltage - Isolation	Applications	Mounting Type	Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage - Input (Max) [Max]	Package / Case	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Features	Efficiency	Voltage - Input (Min) [Min]	Control Features	Size / Dimension [z]	Size / Dimension [y]
Flex Power Modules PKB4110CPIHS	2250 VDC	ITE (Commercial)	Through Hole	Isolated Module	5 V	0.89 in	12.7 mm	58.4 mm	22.7 mm	2.3 in	0.5 in	cURus, IEC, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	30 A	150 W	Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense	94.7 %	36 V
Flex Power Modules PKB4111DPI	2250 VDC	ITE (Commercial)	Through Hole	Isolated Module	5 V	0.89 in		58.4 mm		2.3 in	0.38 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	30 A	150 W	Adjustable Output, Remote On/Off, Remote Sense	94.7 %	36 V	Active Low, Enable	9.6 mm	22.7 mm
Flex Power Modules PKB4113CPI	1.5 kV	ITE (Commercial)	Through Hole	Isolated Module	12 V	0.89 in		58.4 mm		2.3 in	0.34 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	12 A	144 W	Adjustable Output, Remote On/Off, Remote Sense	93 %	36 V	Active Low, Enable	8.6 mm	22.7 mm
Flex Power Modules PKB4113CPIHS	1.5 kV	ITE (Commercial)	Through Hole	Isolated Module	12 V	0.89 in	12.7 mm	58.4 mm	22.7 mm	2.3 in	0.5 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	12 A	144 W	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	93 %	36 V	Active Low, Enable
Flex Power Modules PKB4110CPI	1.5 kV	ITE (Commercial)	Through Hole	Isolated Module	3.3 V	0.89 in		58.4 mm		2.3 in	0.34 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	40 A	132 W	Adjustable Output, Remote On/Off, Remote Sense	91 %	36 V	Active Low, Enable	8.6 mm	22.7 mm
Flex Power Modules PKB4110DPI	2250 VDC	ITE (Commercial)	Through Hole	Isolated Module	3.3 V	0.89 in		58.4 mm		2.3 in	0.38 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	40 A	132 W	Adjustable Output, Remote On/Off, Remote Sense	94.7 %	36 V	Active Low, Enable	9.6 mm	22.7 mm
Flex Power Modules PKB4111DPIHS	1.5 kV	ITE (Commercial)	Through Hole	Isolated Module	3.3 V	0.89 in		58.4 mm		2.3 in	0.52 "	cURus, IEC, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	40 A	132 W	Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense	91 %	36 V		13.2 mm	22.7 mm
Flex Power Modules PKB4118GCPI	1.5 kV	ITE (Commercial)	Through Hole	Isolated Module	1.8 V	0.89 in		58.4 mm		2.3 in	0.34 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	60 A	108 W	Adjustable Output, Remote On/Off, Remote Sense		36 V	Active Low, Enable	8.6 mm	22.7 mm
Flex Power Modules PKB4111CPI	1.5 kV	ITE (Commercial)	Through Hole	Isolated Module	5 V	0.89 in		58.4 mm		2.3 in	0.34 in	CB, CSA, IEC, TUV, UL	75 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	28 A	140 W	Adjustable Output, Remote On/Off, Remote Sense	92 %	36 V	Active Low, Enable	8.6 mm	22.7 mm
Flex Power Modules PKB4111API	2250 VDC	ITE (Commercial)	Through Hole	Isolated Module	5 V	0.89 in		58.4 mm		2.3 in	0.33 in	CB, CSA, IEC, TUV, UL	72 V	Eighth Brick	62368-1	125 °C	-40 °C	Eighth Brick	1	25 A	125 W	Adjustable Output, Remote On/Off, Remote Sense	93.5 %	36 V	Active Low, Enable	8.5 mm	22.7 mm
